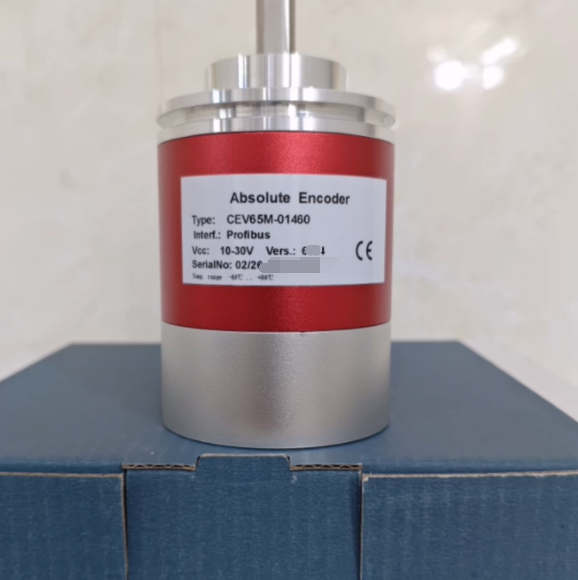

CEV65M-01460
| Technical Specifications | |
| Parameter | Value/Description |
| Order Number | CEV65M-01460 (Alt.: CEV65M*4096/4096 PB) |
| Type | Absolute Single-turn / Multi-turn Encoder |
| Interface | PROFIBUS DP (IEC 61158, IEC 61784), RS485 Physical Layer |
| Steps per Revolution (Single-turn) | 4,096 (12-bit) |
| Number of Revolutions (Multi-turn) | 4,096 (12-bit) |
| Total Resolution | ≤ 31 Bit (Programmable) |
| Supply Voltage | 11 – 27 V DC (Nominal 24 V DC) |
| Current Consumption | ~120 mA (No load) |
| Mechanical Data | |
| Parameter | Value/Description |
| Flange Type | ZB36 (Centering flange) |
| Shaft Type | 10FL / 19.5 mm (Solid shaft with flat surface) |
| Protection Class | IP65 (Ingress protection against dust and water jets) |
| Connection Type | 3 x PG9 Radial cable gland |
| Maximum Mechanical Speed | ≤ 6,000 RPM |
| Weight | Approx. 0.7 kg |
| Housing Material | Hard alloy / Stainless steel variant |
| Starting Torque (20 °C) | 2 Ncm |
| Shaft Loading (Axial/Radial) | ≤ 40 N / ≤ 60 N |
| Environmental Conditions | |
| Parameter | Value/Description |
| Operating Temperature | -20 °C to +70 °C |
| Storage Temperature | -30 °C to +80 °C |
| Vibration Resistance | ≤ 100 m/s² (50-2000 Hz) |
| Shock Resistance | ≤ 1000 m/s² (11 ms half-sine) |
