| Basic Information |
|
| Part Number |
6FC5403-0AA20-1AA1 |
| Product Family |
SINUMERIK HT 8 Handheld Terminal |
| Type |
Handheld Operator Unit with Integrated Electronic Handwheel |
| Manufacturer |
Siemens AG |
| Country of Origin |
Germany |
| Mechanical Specifications |
|
| Weight |
3.99 kg (approx.) |
| Protection Class |
IP65 (fully assembled and connected) |
| Housing Material |
Industrial-grade plastic, ergonomic design |
| Operating Temperature |
0 °C to +55 °C |
| Storage Temperature |
-30 °C to +70 °C |
| Relative Humidity |
5% to 95% (non-condensing) |
| Electrical & Communication |
|
| Power Supply |
5 V DC ±5%, max. 100 mA (via CNC interface) |
| Communication Interface |
Industrial Ethernet (RJ45) |
| USB Interfaces |
2 ports (1x Type A, 1x Mini Type B) |
| Functional Features |
|
| Integrated Handwheel |
Yes (100 pulses/rev, quadrature encoder) |
| Display |
Color LCD with keypad for CNC operation |
| Controls |
Emergency stop button, axis selection switch, feedrate override, handwheel mode |
| Compatibility |
SINUMERIK 840D/840D sl CNC systems |
| Certifications & Compliance |
|
| Approvals |
CE, UL, EAC, IECEx (where applicable) |
| Standards Compliance |
EN 61010-1, EN 61326-1, EN 61000-6-2/4 |
| Lifecycle & Packaging |
|
| PLM Status |
PM400 (Announcement of phase-out) |
| Packaging |
Industrial-grade cardboard box, suitable for storage/transport |

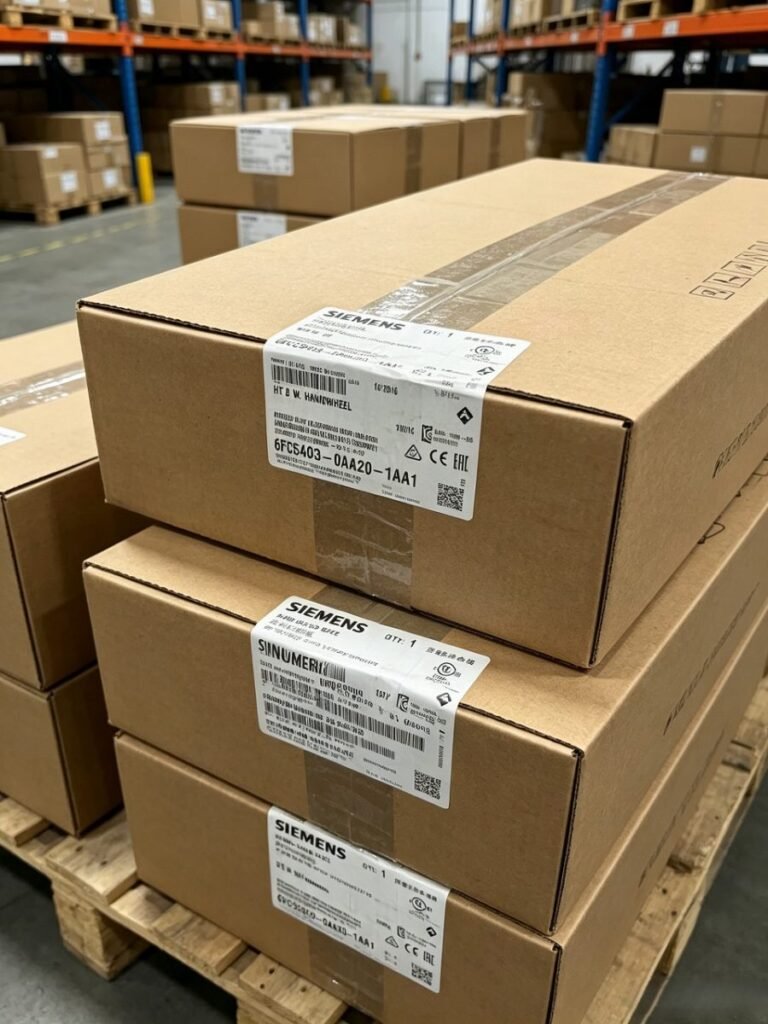

| Manufacturing Date (as per label) |
10/2016 |
