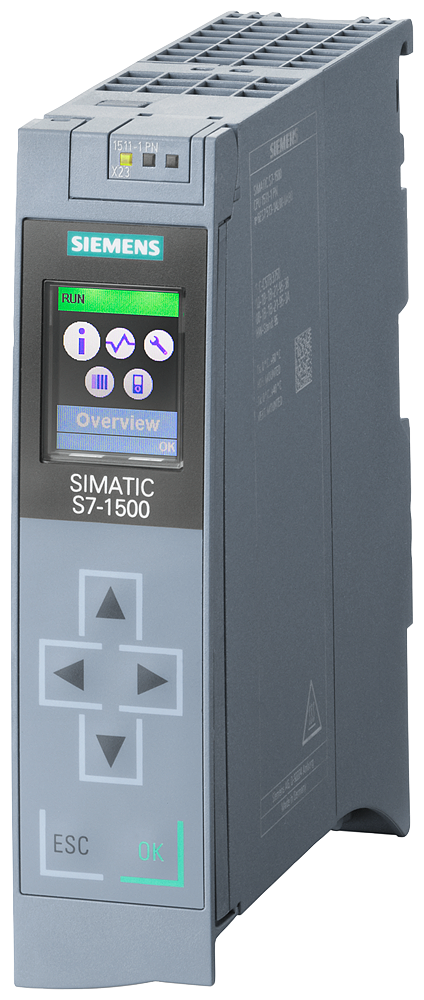

6AG1516-3AN02-2AB0
SIPLUS S7-1500 CPU 1516-3 PN/DP based on 6ES7516-3AN02-0AB0 with conformal coating, -40…+60 °C, central processing unit with work memory 1 MB for program and 5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 3rd interface: PROFIBUS, 10 ns bit performance, SIMATIC Memory Card required
| Category | Verified Specification for 6AG1516-3AN02-2AB0 |
|---|---|
| MLFB Order Code | 6AG1516-3AN02-2AB0 |
| Full Name | SIPLUS S7-1500 CPU 1516-3 PN/DP Central Processing Unit |
| Base Model Reference | Based on 6ES7516-3AN02-0AB0 |
| Brand | Siemens |
| Country of Origin | Germany |
| Working Memory | 1 MB Program memory + 5 MB Data memory |
| Load Memory | SIMATIC Memory Card mandatory (max.32GB, NOT included) |
| Execution Speed | Bit operation:10 ns; Word:12 ns; Fixed-point:16 ns; Floating-point:64 ns |
| PCB Treatment | Conformal Coating (防腐蚀三防涂层，抵抗凝露、盐雾、腐蚀性气体) |
| Integrated Communication Interfaces | IF1: PROFINET IRT (2-port integrated RJ45 switch)
IF2: PROFINET RT (RJ45) IF3: PROFIBUS DP DB9 interface, DP Master only (Slave mode NOT supported) |
| Supported Core Functions | Isochronous mode, Integrated Motion Control, Web Server, OPC UA Server/Client, Know-how protection, front LCD display |
| Timers & Counters | Max.2048 S7 Timers; Max.2048 S7 Counters |
| Power Supply | 24 V DC (19.2~28.8 V DC)
Rated input current:0.85 A; Typical power loss:5.7 W |
| Mechanical Dimensions | W 70 mm × H 147 mm × D 129 mm |
| Net Weight | Approx. 0.612 kg |
| Mounting | Standard DIN rail mounting for S7-1500 rack |
| Protection Class | IP20, cabinet installation only |
| ✅ SIPLUS Extended Temperature Range (Horizontal mounting) | Continuous operation: -40 °C ~ +60 °C
Storage temperature: -40 °C ~ +85 °C Humidity:5–95% non‑condensing, withstand occasional condensation |
| Engineering Software Requirement | FW V2.8: TIA Portal V16 or higher
FW V2.9: TIA Portal V17 or higher |
| Certifications | CE, UL/cULus, RCM, IEC 61131-2 compliant; meets EN 60721 harsh environment standards |
| Lifecycle Status | Active production SIPLUS ruggedized CPU |
| Warranty | 1 Year standard manufacturer warranty |
| Critical Model Distinction |
