6AG4104-2AA01-0XX5
| Order No. | 6AG4104-2AA01-0XX5 |

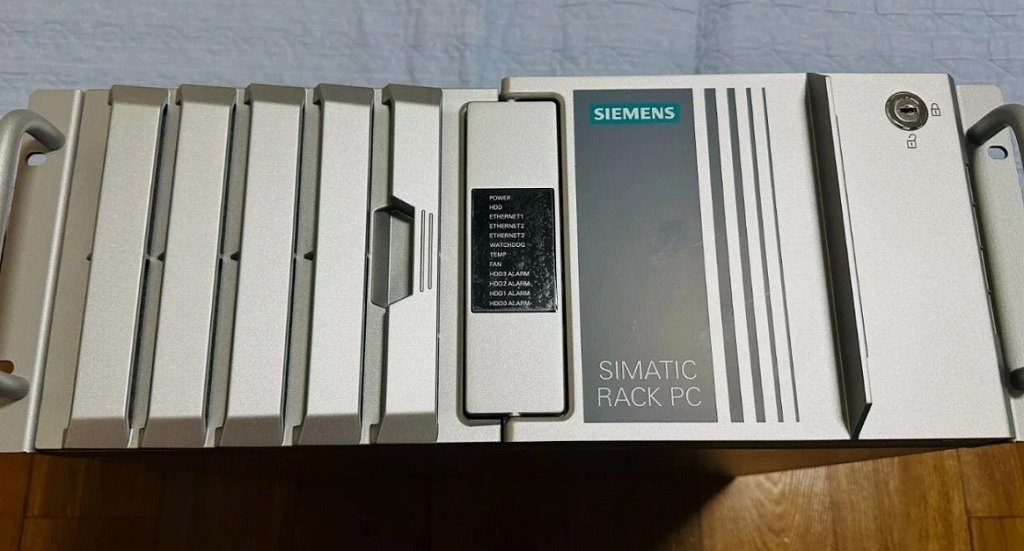

| Product Name | SIMATIC IPC547D (Rack PC, 19″, 4HU) |
| Interfaces | 2x Gbit LAN (RJ45), 1x DisplayPort, 1x DVI-I, 8x USB (rear side), 2x USB (front), 1x USB (internal), 1x serial (COM 1), 2x PS/2, audio |
| Slots (long) | 7 slots total: 4x PCI, 1x PCIe x16, 1x PCIe x16 (4 lanes), 1x PCIe x8 (1 lane) |
| Mounting Spaces | 6 total: 3x 5.25″ (external), 1x 3.5″ (externally accessible), 2x 3.5″ (internally accessible) |
| Monitoring Features | Temperature and fan monitoring, Watchdog |
| Additional Feature | Card retainer |
| Processor | Pentium Dual Core G850 (2C/2T, 2.9 GHz, 3 MB last-level cache, EM64T, VT) |
| Storage | 500 GB HDD SATA |
| Memory (RAM) | 1 GB DDR3 SDRAM (1x 1 GB), single channel |
| Optical Drive | DVD-ROM |
| Hardware Expansions | None (without expansions) |
| Graphics | Onboard |
| Operating System | None (without operating system) |
| Software Expansions | None (without expansions) |
| Power Supply | 100/240 V industrial power supply unit |
| Power Cable | China type |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 17,00 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
