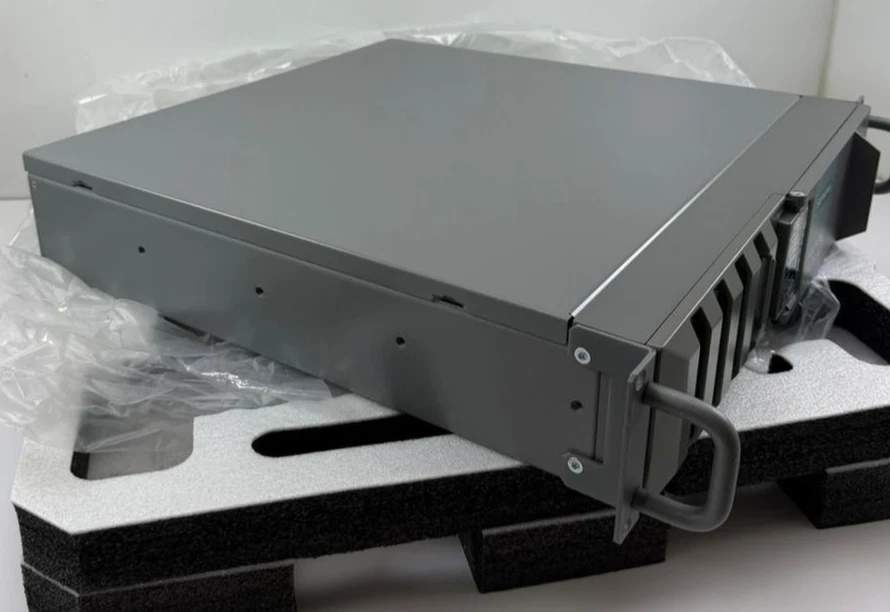

| Article Number |
6AG4112-3HQ43-0DA0 |
| Brand |
SIEMENS |
| Product Series |
SIMATIC IPC427E |
| Form Factor |
19″ 2U Rack Mount |
| CPU |
Intel Core i5-8500 (6 Cores/6 Threads, 3.0 GHz Base, 4.1 GHz Max Turbo, 9 MB L3 Cache) |
| Virtualization |
Intel VT-x, VT-d, Intel AMT |
| Memory |
DDR4 SDRAM; Standard 4 GB, Max 64 GB (2 DIMM slots) |
| Storage |
Standard 1 TB 3.5″ SATA HDD; Support 2.5″/3.5″ SATA SSD/HDD + M.2 slot |
| Industrial Ethernet |
3 × Gigabit Ethernet (RJ45) |
| USB Ports |
2 × USB3.0 (Front), 4 × USB3.1 (Rear), 1 × Internal USB3.1, 2 × USB3.1 Type-C (Rear) |
| Serial Port |
1 × COM (RS232/RS485/RS422, software switchable) |
| Video Interface |
1 × DVI-D, 2 × DisplayPort |
| Audio |
Line Out / Mic In |
| Expansion Slots |
2 × PCI, 2 × PCIe x16 (8 Lanes), 1 × M.2, Optional CFast slot |
| Dimensions (W×H×D) |
482.6 mm × 88.1 mm × 447 mm |
| Net Weight |
Approx. 8.5 kg |
| Operating Temperature |
0 °C ~ 55 °C (24/7 continuous operation) |
| Storage Temperature |
-20 °C ~ 70 °C |
| Relative Humidity |
5% ~ 95%, non-condensing |
| Vibration Resistance |
0.5 g (RMS), 10 Hz ~ 150 Hz |
| Shock Resistance |
5 g, 11 ms, half sine wave |
| Ingress Protection |
IP20 (Front), IP30 (Enclosure) |
| Power Input |
100~240 V AC, 50/60 Hz |
| Power Consumption |
Typical 150 W, Max 300 W |
| Redundant Power |
Optional |
| Power Protection |
Overvoltage, undervoltage, short circuit & overload protection |
| Pre-installed OS |
Windows 10 Pro / Windows 11 Pro 64-bit (MUI) |
| Compatible OS |
Windows Server 2016/2019/2022, Red Hat / SUSE / Ubuntu Linux |
| Preloaded Software |
SIMATIC IPC DiagMonitor, Industrial Drivers |
| Supported Software |
TIA Portal, WinCC, STEP 7, SCADA & HMI software |
| System Monitoring |
Temperature, fan speed, voltage monitoring, watchdog timer |
| Security Features |
Secure Boot, Optional TPM 2.0, Remote Management, Password Protection |
| Industrial Design |
24/7 continuous operation, dust-resistant, anti-vibration |
| Certifications |
CE, UL, cUL, FCC Class A, IEC 61131-2 |
