| Basic Identification |
MLFB Order Number |
6AV7882-0CB20-5BA0 |
|
Product Model |

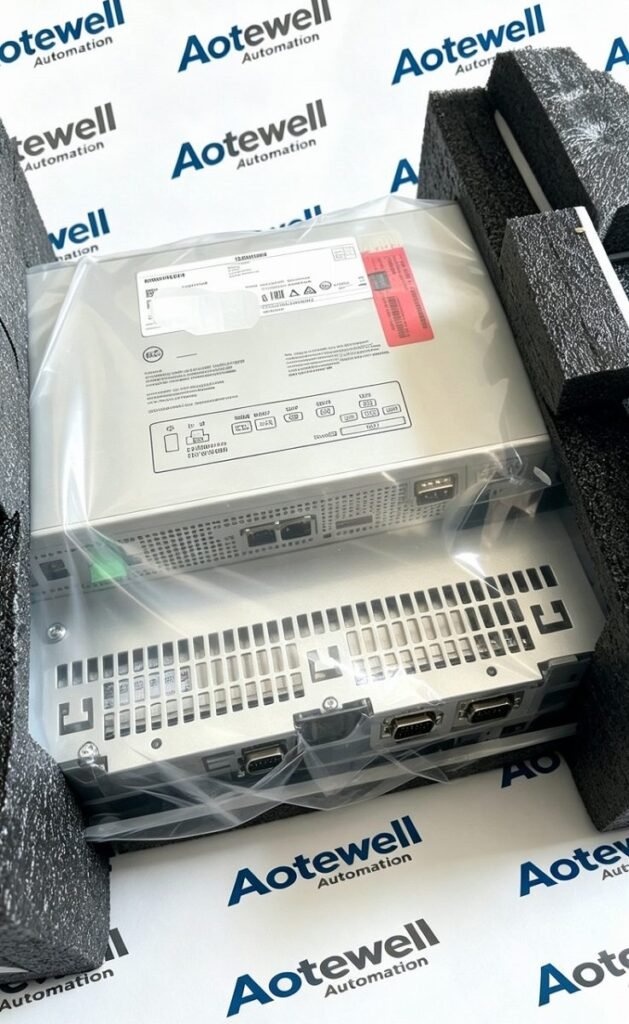

SIMATIC IPC277E Nanopanel Industrial Panel PC |
|
Manufacturer |
SIEMENS AG |
|
Origin |
Germany |
|
Lifecycle Status |
Discontinued, PM410 phase-out since 01.06.2025 |
| Display Module |
Screen Size |
12-inch TFT Wide LCD |
|
Native Resolution |
1280 × 800 WXGA |
|
Touch Type |
Analog resistive single-touch screen |
|
Backlight MTBF (@25°C) |
80,000 hours |
|
Front Panel Protection |
IP65 / NEMA 4X |
|
Rear Enclosure Protection |
IP20 |
| CPU & Cooling |
Cooling Method |
Fanless fully passive cooling |
|
Processor |
Intel Celeron N2930 (4 Cores / 4 Threads) |
|
CPU Clock |
Base 1.83 GHz, Burst 2.16 GHz, 2 MB L2 Cache |
|
Onboard Chipset |
Integrated Intel HD Graphics + TPM security chip |
| Memory & Storage |
System RAM |
4 GB DDR3L SODIMM, expandable up to 8 GB |
|
Internal Drive |
80 GB replaceable industrial SATA SSD |
|
Expansion Slot |
CFast card slot for logging, backup & data storage |
| Hardware Interfaces |
Ethernet |
2 × Gigabit RJ45 (10/100/1000 Mbps, PROFINET compliant) |
|
USB Ports |
1 × USB3.0 (rear); 3 × USB2.0 (2 rear + 1 front service port) |
|
Serial COM Port |
1 × COM1, software configurable RS232 / RS422 / RS485 |
|
External Video Output |
1 × DisplayPort |
| Operating System |
OS Version |
Windows 7 Ultimate SP1 32-bit, Multi-language MUI (EN/DE/FR/IT/ES) |
|
Pre-installed Runtime Software |
None |
| Power Supply Spec |
Rated Input Voltage |
24 V DC; allowable range: 19.2 V ~ 28.8 V DC |
|
Max Full-Load Power Consumption |
38 W |
| Mechanical Dimension |
Front Panel Size (W × H) |
334 mm × 244 mm |
|
Overall Depth |
73 mm |
|
Panel Mount Cutout (W × H) |
314 mm × 224 mm |
|
Net Weight |
2.75 kg |
| Environmental Ratings |
Continuous Operating Temp (vertical mounting) |
0 °C ~ +50 °C |
|
Storage & Transport Temperature |
-20 °C ~ +60 °C |
|
Relative Humidity |
5% ~ 90% RH, non-condensing |
|
Vibration Compliance |
IEC 60068-2-6 industrial standard |
|
Shock Resistance |
IEC 60068-2-27 industrial standard |
| Certification & Export |
Global Certifications |
CE, cULus, UKCA, RoHS compliant |
|
Export Control Code (ECCN) |
5A992 |
