| MLFB Order Number |
6AV7882-0EA10-3NA0 |
| Product Series |

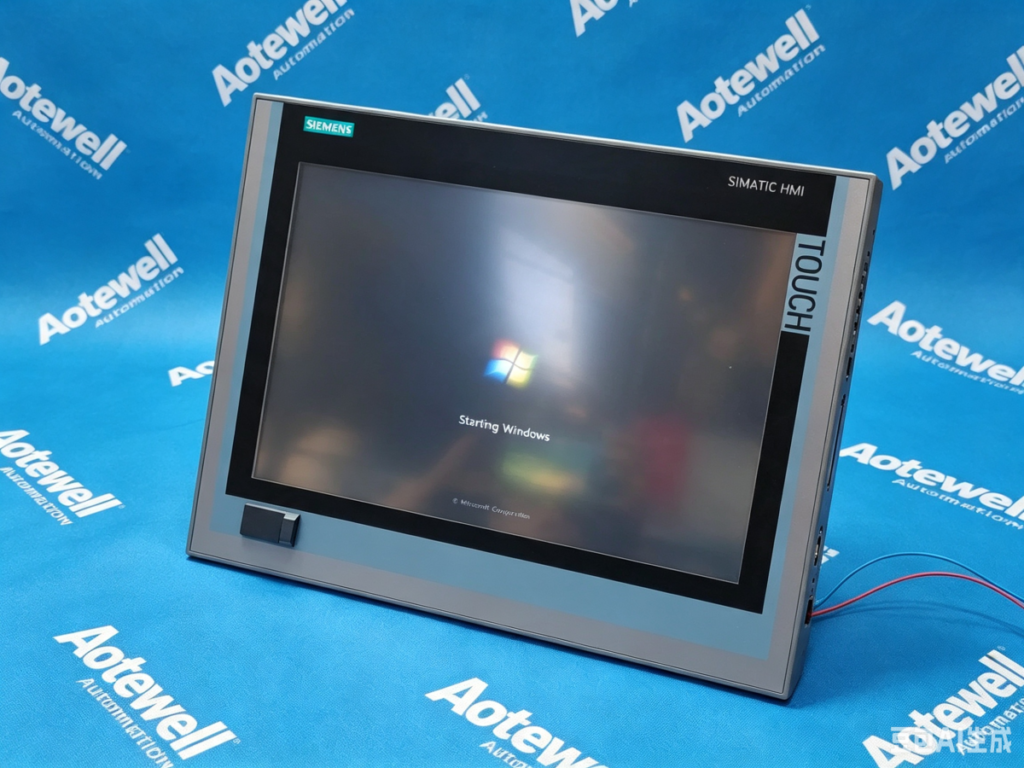

SIMATIC IPC277E Nanopanel Industrial Panel PC |
| Display |
19″ TFT LCD, 1280 × 1024 SXGA, analog resistive single touch |
| Front Protection Rating |
IP65 / NEMA 4X |
| Rear Housing Protection |
IP20 |
| Backlight MTBF @ 25°C |
80,000 hours |
| Cooling Mode |
Fanless passive cooling |
| Processor |
Intel Celeron N2807, 2 Cores / 2 Threads |
| CPU Performance |
Base 1.58 GHz, Burst 2.16 GHz, L2 Cache 1 MB |
| Integrated Graphics |
Intel HD Graphics |
| System RAM |
2 GB DDR3L, expandable up to 8 GB |
| Internal Storage |
128 GB CFast memory card (no built-in SSD) |
| Expansion Slot |
CFast card slot for data logging & backup |
| Ethernet Ports |
2 × Gigabit RJ45 (10/100/1000 Mbps, PROFINET compliant) |
| USB Interfaces |
1 × USB3.0 (rear); 3 × USB2.0 (2 rear + 1 front service port) |
| Serial Interface |
1 × COM1, software configurable RS232 / RS422 / RS485 |
| External Video Output |
1 × DisplayPort |
| Operating System |
Windows Embedded Standard 7 P SP1, 32-bit, Multi-language (EN/DE/FR/IT/ES) |
| Pre-installed SIMATIC Runtime |
WinCC RT Advanced V15, 4096 process points, recipe & archive license |
| Rated Input Power |
24 V DC, allowable range: 19.2 V ~ 28.8 V DC |
| Max Power Consumption (Full Load) |
46 W |
| Front Panel Dimension (W × H) |
444 mm × 344 mm |
| Overall Depth |
78 mm |
| Panel Mount Cutout (W × H) |
424 mm × 324 mm |
| Approximate Net Weight |
4.0 kg |
| Vertical Operating Temperature |
0 °C ~ +50 °C |
| Storage & Transport Temperature |
-20 °C ~ +60 °C |
| Ambient Humidity |
5% ~ 90% RH, non-condensing |
| Vibration Standard |
Compliant with IEC 60068-2-6 |
| Shock Standard |
Compliant with IEC 60068-2-27 |
| Certifications |
CE, cULus, UKCA, RoHS |
| ECCN Export Code |
5A992 |
| Country of Origin |
Germany |
| Lifecycle Status |
Discontinued, PM410 phase-out status |
