| Basic Identification |
MLFB Order Number |
6ES7660-7CA18-3BH2 |
|
Product Family |

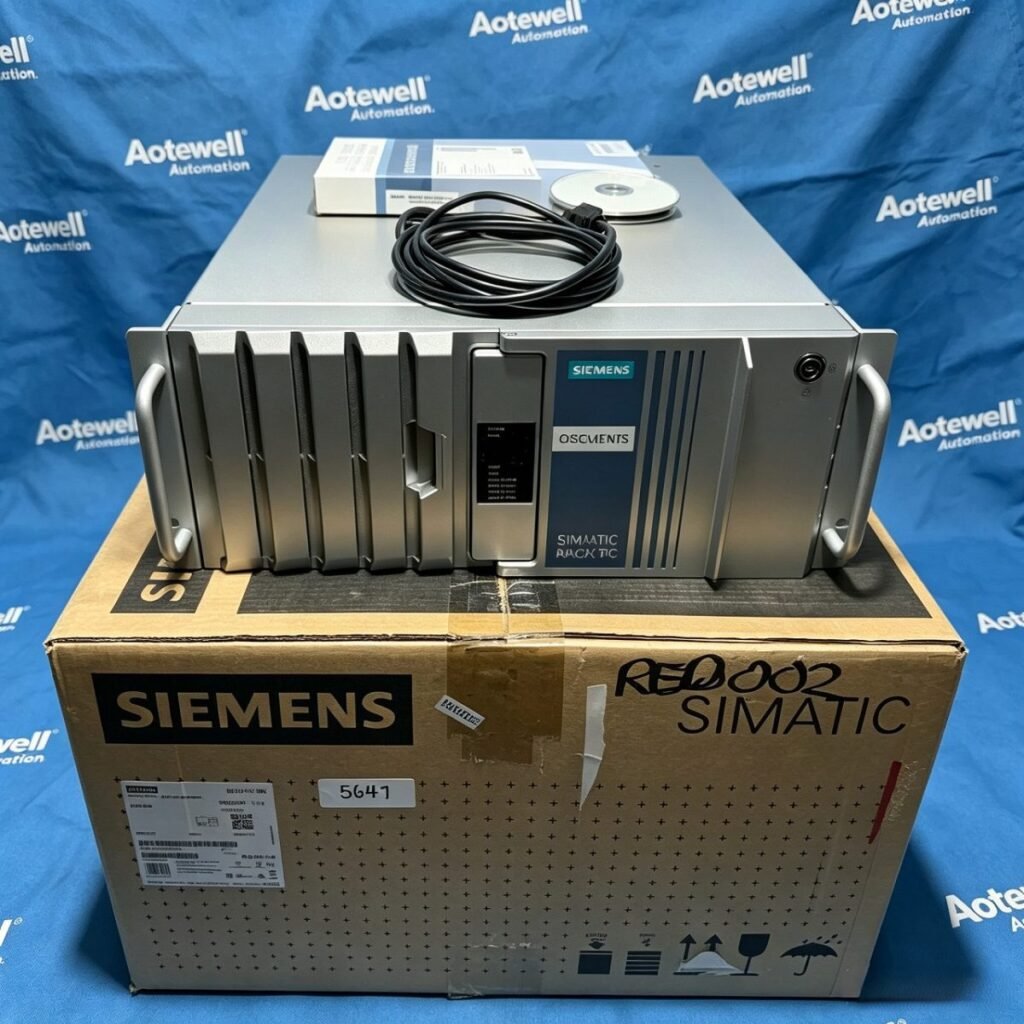

SIMATIC PCS 7 Industrial Workstation (IPC547D 19″ 4U Rack PC) |
|
Application Type |
PCS 7 OS Server Single Station |
|
Manufacturer |
SIEMENS AG |
|
Country of Origin |
Germany |
|
Lifecycle Status |
Discontinued, PM410 phase-out |
| CPU & Chipset |
Processor Model |
Intel Core i5-4570TE (4 Cores / 4 Threads) |
|
CPU Base Frequency |
2.7 GHz, Turbo Boost up to 3.3 GHz, 4 MB L3 Cache |
|
Chipset |
Intel C226 Industrial PCH, supports iAMT / VT-d virtualization |
|
Integrated Graphics |
Intel HD 4600 onboard GPU |
| Memory Configuration |
System RAM |
8 GB DDR3 Dual Channel (2×4 GB) |
|
Max Expandable RAM |
Up to 16 GB DDR3 SDRAM |
| Storage System |
Internal Storage |
RAID 1 dual 500 GB industrial SATA HDD (vibration-damped bracket) |
|
Optical Drive |
Slim DVD±RW read/write drive pre-installed |
|
RAID Controller |
Onboard Intel hardware RAID (0 / 1 / 5 / 10) |
| Expansion Slots |
Total Bus Slots |
7 expansion slots |
|
PCIe Slots |
2 × PCIe Gen3 x16 mechanical slots (4 PCIe lanes each) |
|
Legacy PCI Slots |
2 × standard PCI slots |
| System Monitoring |
Monitoring Functions |
CPU/chassis temperature detection, multi-fan speed monitoring, hardware watchdog timer, anti-loose PCI card retainer |
| Standard I/O Interfaces – Rear Panel |
Ethernet |
2 × Gigabit RJ45 (IEEE802.3, PROFINET compatible) |
|
Video Output |
1 × DVI-I + 2 × DisplayPort V1.2 multi-monitor support |
|
Serial Port |
1 × COM1, configurable RS232 / RS422 / RS485 |
|
PS/2 Ports |
2 ports for keyboard & mouse |
|
Audio |
HD Audio: Line Out, Microphone In |
|
USB Rear |
4 × USB3.0 + 3 × USB2.0 |
|
Internal USB Header |
1 × USB3.0 internal port |
| Front Panel Interfaces |
Service USB Ports |
2 × USB3.0 high-current service ports |
| Operating System & PCS7 Software |
OS Version |
Windows 7 Ultimate SP1 64-bit Multi-language MUI (EN/DE/FR/IT/ES) |
|
Pre-installed Software |
SIMATIC PCS 7 OS Server Runtime V8.1 SP1 |
|
Runtime License |
Single station OS server license, supports max 16 OS clients |
| Power Supply Spec |
PSU Type |
Single wide-range industrial AC power supply |
|
Input Voltage |
100–240 V AC, 50/60 Hz |
|
Mains Hold-up Time |
≥ 20 ms under full rated load |
| Mechanical Specs |
Form Factor |
Standard 19-inch rack mount, 4U horizontal chassis |
|
Overall Dimension (W × H × D) |
434 mm × 177 mm × 446 mm |
|
Front Ingress Rating |
IP30 |
|
Rear Enclosure Rating |
IP20 |
|
Approximate Net Weight |
18.2 kg |
| Environmental Ratings |
Horizontal Operating Temperature |
0 °C ~ +50 °C |
|
Storage & Transport Temperature |
-20 °C ~ +60 °C |
|
Ambient Humidity |
5% ~ 90% RH, non-condensing only |
|
Vibration Compliance |
IEC 60068-2-6, 0.5 g continuous vibration |
|
Shock Resistance |
IEC 60068-2-27, 5 g transient half-sine shock |
| Certifications & Export |
Global Approvals |
CE, cULus, UL61010, CSA, RCM, EAC |
|
EMC Standard |
EN 61000-6-2 (industrial immunity), EN 61000-6-3 Class B emission |
|
ECCN Export Control Code |
5A992 |
