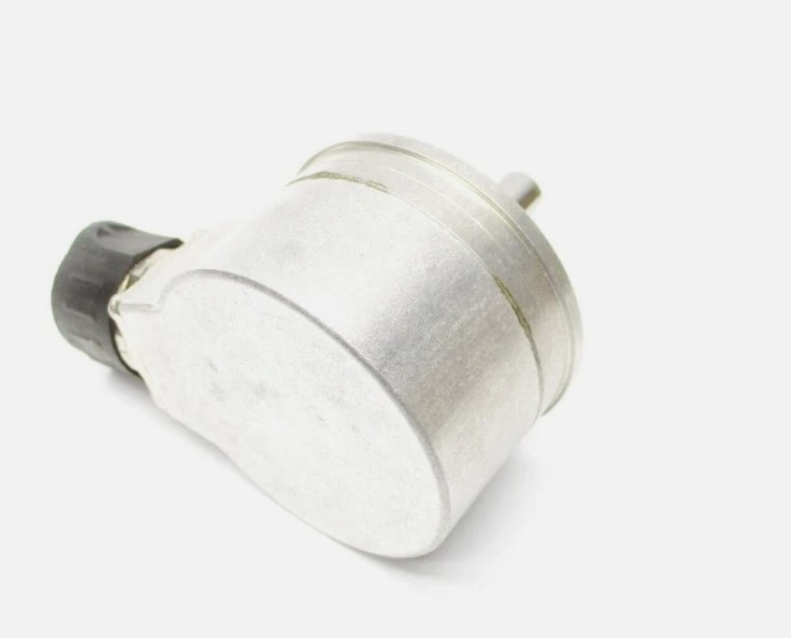

6FX2001-5FN25
| Product Type | Absolute Encoder (Multiturn) |
| Part Number | 6FX2001-5FN25 |
| Interface | PROFINET IO with RT (Real-Time) / IRT (Isochronous Real-Time) |
| Operating Voltage (Up) | DC 10 … 30 V |
| Transmission Rate | 100 Mbit/s |
| Resolution (Total) | 30 bit (Singleturn: 13 bit / Multiturn: 27 bit) |
| Telegram Types | PNO Encoder Profile V4.1 (Class 1-4), Standard 81-89, Siemens 860/862 |
| Coding (Scanning) | Gray code |
| Mechanical Design | Synchro flange / Solid shaft (6 mm diameter, 10 mm length) |
| Electrical Connection | 2 x M12 connector (4-pin, for PROFINET ports) & 1 x M12 connector (4-pin, for power supply) — Radial |
| Maximum Mechanical Speed | 6,000 1/min |
| Accuracy | ± 79″ (± 1 LSB at 8192 steps) |
| Starting Torque (at 20°C) | ≤ 0.01 Nm |
| Rotor Moment of Inertia | 0.0000019 kgm² |
| Max. Angular Acceleration | 100,000 rad/s² |
| Shaft Load (n ≤ 6000 rpm) | Axial: 40 N / Radial: 110 N |
| Shaft Load (n > 6000 rpm) | Axial: 10 N / Radial: 20 N |
| Vibration Resistance | 100 m/s² (55-2000 Hz) per EN 60068-2-6 |
| Shock Resistance | 1,000 m/s² (6 ms) per EN 60068-2-27 |
| Ingress Protection | Housing: IP67 / Shaft inlet: IP64 |
| Operating Temperature | -40 … +85 °C |
| Standards / Conformity | CE, cULus, EMC Directive 2014/30/EU |
| Net Weight | 0,546 Kg |
