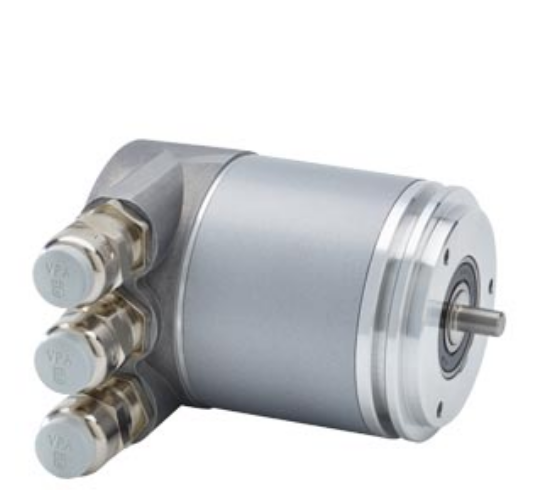

6FX2001-5FP12
| Product Specifications: Siemens 6FX2001-5FP12 | |
| Parameter | Specification |
| Manufacturer | Siemens |
| Product Type | Absolute Rotary Encoder |
| Part Number | 6FX2001-5FP12 |
| Interface | PROFIBUS DP-V2 (Isochronous operation) |
| Resolution (Single-Turn) | 13 Bit (8192 steps per revolution) |
| Electrical Data | |
| Operating Voltage | 10 … 30 V DC |
| Power Consumption (Typ.) | Approx. 2.5 W (300 … 100 mA) |
| Mechanical Data | |
| Max. Rotational Speed | 12,000 rpm |
| Shaft Type | Solid shaft |
| Shaft Diameter | 6 mm |
| Shaft Length | 10 mm |
| Mounting Type | Synchronous / Flange mount |
| Termination | Radial cable output (PG radial) |
| Environmental Data | |
| Operating Temperature | -40°C … +85°C |
| Protection Rating (IP) | IP64 / IP67 |
| Physical Data | |
| Weight | Approx. 0.544 kg |
| Compatibility | SINUMERIK, SIMOTION, SIMATIC, SINAMICS |
| Status | Obsolete / No Longer Stocked (Discontinued) |
