6FX2001-5FE13
| General Information | |
| Article Number | 6FX2001-5FE13 |

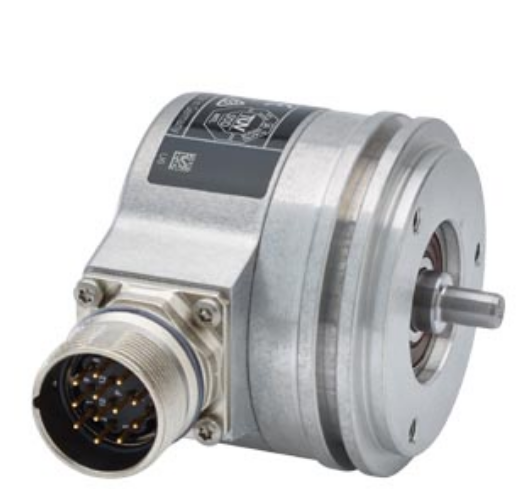

| Product Description | ABSOLUTE VALUE ENCODER, SINGLETURN 13 BIT WITH ENDAT, OPER. VOLTAGE 5 V, SYNCHROFLANGE, SHAFT 6MM, RADIAL FLANGE SOCKET |
| Product Family | Absolute encoders with EnDat 2.1 |
| Electrical Data | |
| Operating Voltage (Up) | DC 5 V ± 5% |
| Current Consumption (approx.) | 160 mA |
| Interface | EnDat 2.1 |
| Incremental Track | 512 S/R, 1 Vpp |
| Short-circuit Strength | Yes |
| Mechanical Data | |
| Shaft Type | Solid shaft |
| Shaft Diameter | 6 mm |
| Shaft Length | 10 mm |
| Flange Type | Synchro flange |
| Connection Type | M23 flange socket, Radial |
| Max. Mechanical Speed | 12,000 rpm |
| Rotor Moment of Inertia | 0.00000145 kgm² |
| Max. Angular Acceleration | 100,000 rad/s² |
| Load Capacity | |
| Axial Load (n ≤ 6000 rpm) | 40 N |
| Radial Load (n ≤ 6000 rpm) | 60 N |
| Axial Load (n > 6000 rpm) | 10 N |
| Radial Load (n > 6000 rpm) | 20 N |
| Accuracy & Resolution | |
| Resolution | 13 bit (Singleturn) |
| Accuracy (Incremental track) | ± 60″ |
| Code Type (Sampling) | Gray code |
| Code Type (Transmission) | Binary |
| Environmental Conditions | |
| Operating Temperature | -40 … +100 °C |
| Vibration Resistance (55…2000 Hz) | 300 m/s² (according to EN 60068-2-6) |
| Shock Resistance (6 ms) | 1,000 m/s² (according to EN 60068-2-27) |
| Protection & Standards | |
| Degree of Protection (IP) | IP67 (without shaft input) / IP64 (with shaft input) |
| Net Weight | 0.35 kg (approx. 0.483 kg including packaging) |
