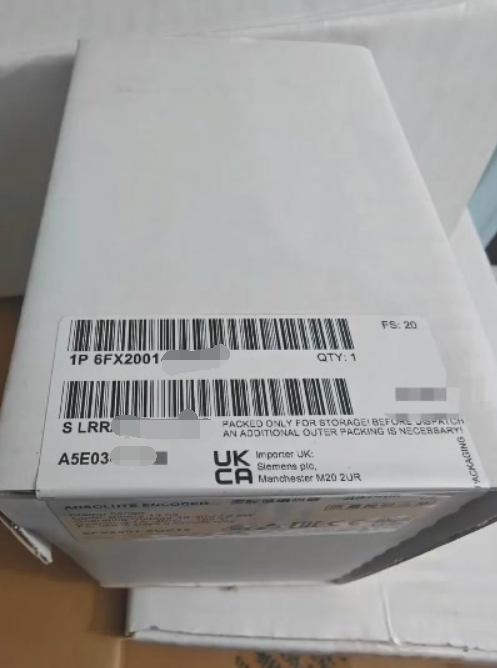

6FX2001-5FS12
| General Information | |
| Product Description | ABSOLUTE VALUE ENCODER SINGLETURN 13 BIT WITH SSI |
| Product Lifecycle (PLM) | PM300: Active Product |
| Net Weight | 0.500 kg |
| Country of Origin | Germany |
| Electrical Specifications | |
| Operating Voltage (Up) | DC 10 … 30 V |
| Current Consumption (approx.) | 160 mA |
| Interface | SSI (Synchronous Serial Interface) |
| Clock Input | Differential line receiver according to EIA Standard RS 485 |
| Data Output | Differential line driver according to EIA Standard RS 485 |
| Short-Circuit Strength | Yes |
| Mechanical Specifications | |
| Type | Singleturn absolute encoder |
| Resolution | 13 bit (8192 steps per revolution) |
| Flange Type | Synchronous flange |
| Shaft Diameter | 6 mm |
| Shaft Length | 10 mm |
| Connection Type | M23 flange socket, Radial |
| Max. Mechanical Speed | 12,000 r/min |
| Rotor Moment of Inertia | 0.00000145 kgm² |
| Environmental & Standards | |
| Degree of Protection | IP64 (with shaft input) / IP67 (without shaft input) |
| Operating Temperature | -40 … +85 °C |
| Vibration Resistance (55…2000 Hz) | 300 m/s² (according to EN 60068-2-6) |
| Shock Resistance (6 ms) | 1,000 m/s² (according to EN 60068-2-27) |
