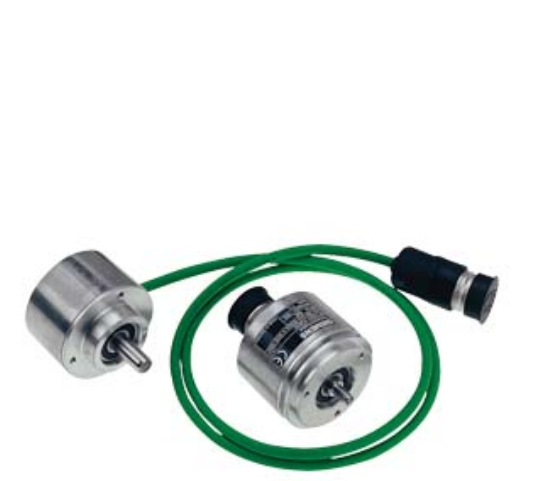

6FX2001-2CB02
| Parameter | Specification |
|---|---|
| Model Number | 6FX2001-2CB02 |
| Product Type | Incremental encoder with RS422 (TTL) |
| Resolution | 1024 pulses per revolution (P/R) |
| Output Signal | RS 422 (TTL) differential signals |
| Shaft Type | Synchro-flange, shaft diameter 6 mm |
| Operating Voltage | 5 V DC |
| Cable Outlet | Universal (axial / radial) |
| Cable Length | 1 meter with connector |
| Protection Class | IP64 |
| Max. Mechanical Speed | 12,000 RPM (recommended) |
| Operating Temperature | -40 °C to +100 °C |
| Scanning Frequency | 300 kHz (max) |
| Current Consumption | 150 mA (max) |
| Net Weight | Approx. 0.500 kg |
