6FX2001-2CC50
| Parameter | Value / Description |
|---|---|

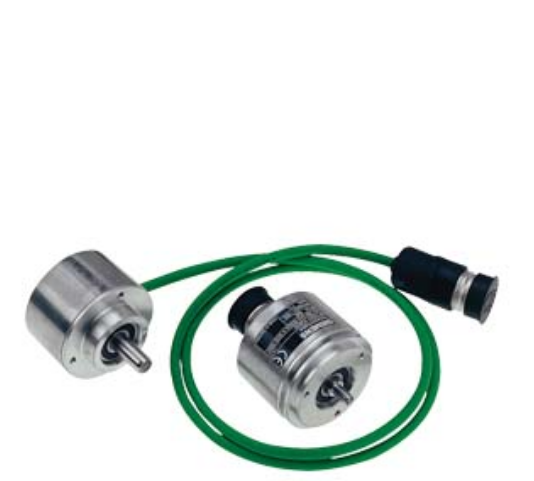

| Product Description | INCREM. ENCODER 6FX2001-2CC50 WITH RS 422 (TTL), 2500 P/R, SYNCHRO-FLANGE SHAFT 6MM OPERATING VOLTAGE: 5 V UNIVERSAL CABLE OUTLET AXIAL / RADIAL CABLE 1M WITH CONNECTOR |
| Product Family | Incremental encoders with RS422 (TTL) |
| Encoder Type | Incremental, Optical |
| Output Signal Level | TTL (RS 422) |
| Resolution | 2500 pulses per revolution (S/R) |
| Supply Voltage (Up) | DC 5 V ± 10% |
| Current Consumption (no load, max.) | 150 mA |
| Max. Scanning / Sampling Frequency | 300 kHz |
| Switching Time (10 … 90 %) | ≤ 50 ns |
| Phase Relation Signal A to B | 90 ° |
| Edge Clearance at 300 kHz | 0.45 µs |
| LED Failure Monitoring | High impedance driver |
| Electrical Max. Speed | 7,200 RPM |
| Mechanical Max. Speed | 12,000 RPM |
| Max. Angular Acceleration | 100,000 rad/s² |
| Shaft Diameter | 6 mm (Solid shaft, Synchro-flange) |
| Shaft Length | 10 mm |
| Rotor Moment of Inertia | 0.00000145 kg m² |
| Axial Load Capacity (n ≤ 6000 RPM) | 40 N |
| Radial Load Capacity at shaft end (n ≤ 6000 RPM) | 60 N |
| Cable Length (pre-wired) | 1 meter with connector (universal axial/radial outlet) |
| Max. Cable Length (to downstream electronics) | 100 m |
| Degree of Protection | IP67 (housing) / IP64 (shaft input) |
| Operating Temp. (fixed cable) | -40 … +100 °C |
| Operating Temp. (flexible cable) | -10 … +100 °C |
| Vibration Resistance (55…2000 Hz) | 300 m/s² |
| Shock Resistance | 2000 m/s² (2 ms) / 1000 m/s² (6 ms) |
| Net Weight | approx. 0.3 kg |
