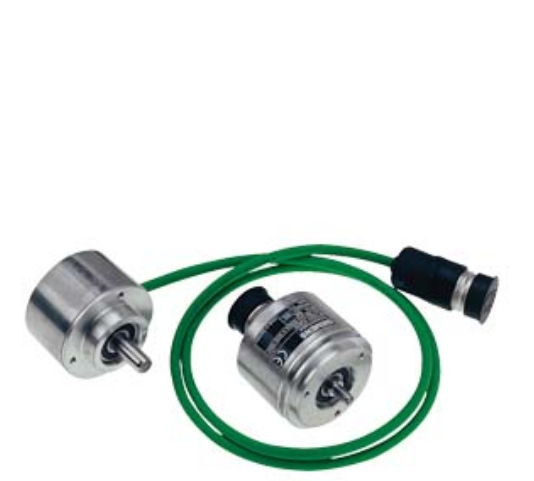

6FX2001-3CC50
| Parameter | Value |
| Product Type | Incremental rotary encoder |
| Part Number | 6FX2001-3CC50 |
| Output Signal | Sinusoidal 1 Vpp |
| Resolution | 2,500 pulses per revolution (PPR / S/R) |
| Operating Voltage (Up) | DC 5 V ±10% |
| Max. Current Consumption (no load) | 150 mA |
| Phase Shift (A to B) | 90° ± 10% |
| Limit Frequency (-3 dB) | ≥ 100 kHz |
| Limit Frequency (-6 dB) | ≥ 200 kHz |
| Max. Cable Length | 150 m |
| Electrical Speed (Max) | 7,200 rpm |
| Mechanical Speed (Max) | 12,000 rpm |
| Shaft Diameter | 6 mm |
| Shaft Length | 10 mm |
| Flange Type | Synchro flange |
| Max. Angular Acceleration | 100,000 rad/s² |
| Rotor Moment of Inertia | 0.00000145 kgm² |
| Degree of Protection | IP67 (without shaft input) / IP64 (with shaft input) |
| Operating Temp (Fixed cable) | -40 … +100 °C |
| Operating Temp (Flexible cable) | -10 … +100 °C |
| Net Weight | approx. 0.3 kg |
