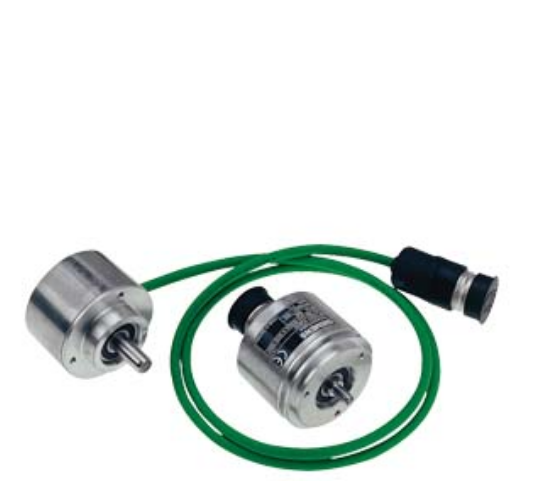

6FX2001-3GC50
| Parameter | Value / Specification |
|---|---|
| Product Type | Incremental encoder with sin/cos 1 Vpp |
| Order Number | 6FX2001-3GC50 |
| Short Description | INCREM. ENCODER 6FX2001-3GC50 WITH 1-V-SINUS 2500 P/R, SYNCHRON. FLANGE, 6 MM SHAFT, VOLTAGE 5 V AXIAL FLANGE CONNECTOR |
| Product Family | Incremental encoders with sin/cos 1 Vpp |
| Supply voltage (Up) | DC 5 V ± 10 % |
| Max. power consumption (no load) | 150 mA |
| Output signal level | Sinusoidal 1 Vpp |
| Resolution | 2,500 Signals / Revolution (S/R) |
| Phase relation (Signal A to B) | 90° ± 10 % |
| Limit frequency (typical) | ≥ 180 kHz (-3 dB) |
| Shaft type | 6 mm diameter, 10 mm length (Synchro flange) |
| Connection type | Axial flange connector |
| Mechanical permissible speed | 12,000 r/min |
| Electrical permissible speed | 7,200 r/min |
| Maximum angular acceleration | 100,000 rad/s² |
| Rotor moment of inertia | ≤ 2.9 x 10⁻⁶ kgm² |
| Starting torque (at 20°C) | ≤ 0.01 Nm |
| Max. vibration (55…2000 Hz) | 300 m/s² |
| Max. shock (6 ms) | 2,000 m/s² |
| Degree of protection | IP67 (housing), IP64 (shaft input) |
| Operating temperature | Fixed cable: -40 … +100 °C Flexible cable: -10 … +100 °C |
| Net weight | approx. 0.3 kg (0.66 lb) |
