6ES7677-2DB40-0AA0

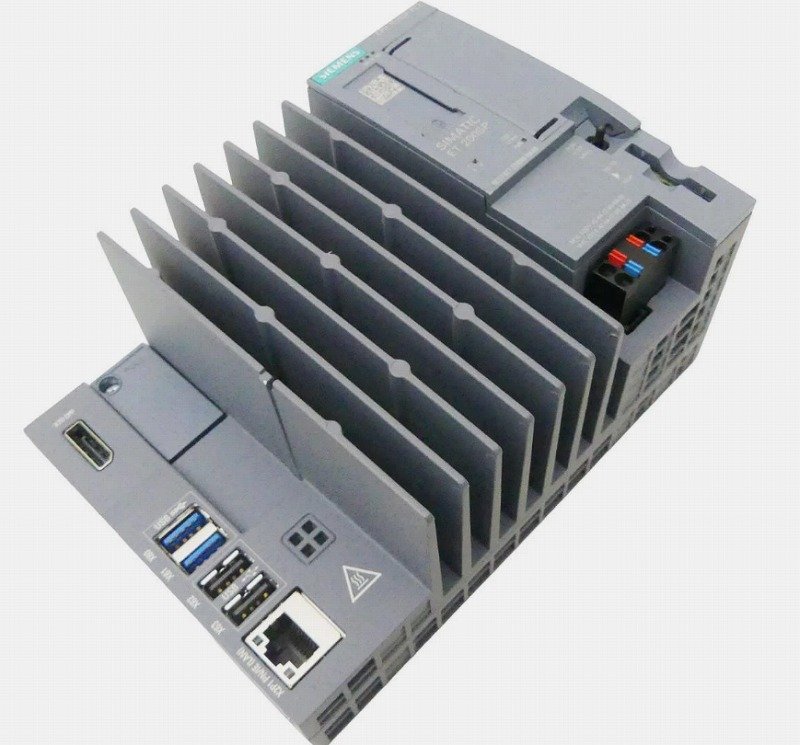

SIMATIC ET 200SP Open Controller, CPU 1515SP PC2, spare part, 8 GB RAM, without CFast Interfaces: 1x slot CFast, 1x slot SD/MMC, 1x connection for ET 200SP bus adapter PROFINET, 1x 10/100/1000 Mbit/s Ethernet, 2x USB 3.0; 2x USB 2.0, 1x display port,
| Order Number | 6ES7677-2DB40-0AA0 |
| Product Type Designation | SIMATIC ET 200SP Open Controller, CPU 1515SP PC2 |
| Product Status | Spare part (replacement unit) |
| Installed RAM | 8 GB |
| Mass Storage Type | Without CFast card (media not included) |
| Interface – CFast Slot | 1x slot (for CFast storage media) |
| Interface – SD/MMC Slot | 1x slot (for SD/MMC memory cards) |
| Interface – ET 200SP Bus Adapter | 1x connection for PROFINET bus adapter |
| Interface – Ethernet (Standard) | 1x 10/100/1000 Mbit/s Ethernet (RJ45) |
| Interface – USB 3.0 | 2x USB 3.0 Type A |
| Interface – USB 2.0 | 2x USB 2.0 Type A |
| Interface – Display Output | 1x DisplayPort |
| PROFINET Communication | Supported via bus adapter interface |
| Application Note | CPU functionality requires a separately ordered CFast card with pre-installed runtime environment and project data |
| Mounting Type | Rail mounting (ET 200SP system integration) |
| Ambient Conditions / Certification | Refer to Siemens standard technical documentation for EN/IEC compliance |
| warranty | 1 YEAR |
| Net Weight (kg) | 1,011 Kg |
| Packaging Dimension | 14,20 x 18,90 x 9,20cm |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
