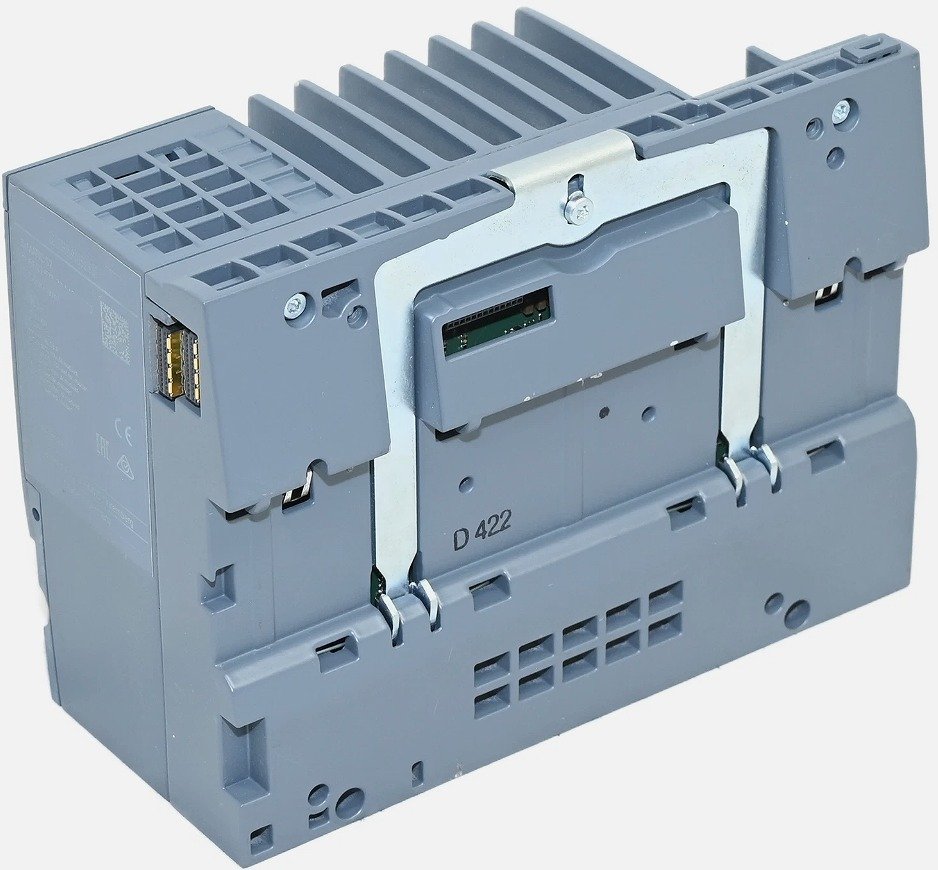

6ES7677-2VB42-0GL0
SIMATIC ET 200SP Open Controller, CPU 1515SP PC2 T + HMI 512PT, 8 GB RAM (basic device 6ES7677-2DB40-0AA0), 128 GB CFast with Windows 10 IoT Enterprise LTSC 2019 64-bit, S7-1500 Software Controller CPU 1505SP T V2x and WinCC Runtime Advanced V17 preinstalled, with 512 PowerTags license; interfaces: 1x slot CFast, 1x slot SD/MMC, 1x connection for ET 200SP BusAdapter PROFINET, 1x 10/100/1000 Mbps Ethernet, 2x USB 3.0, 2x USB 2.0, 1x DisplayPort; documentation on CFast,
| Order Number | 6ES7677-2VB42-0GL0 |
| Product Family | SIMATIC ET 200SP Open Controller |
| Product Type | CPU 1515SP PC2 T + HMI 512PT |
| Base Device | 6ES7677-2DB40-0AA0 |
| System Memory (RAM) | 8 GB |
| Mass Storage | 128 GB CFast (with Windows 10 IoT Enterprise LTSC 2019 64‑bit) |
| Pre‑installed Software (PLC) | S7‑1500 Software Controller CPU 1505SP T V2x (pre‑installed) |
| Pre‑installed Software (HMI) | WinCC Runtime Advanced V17 (pre‑installed) with 512 PowerTags license |
| Operating System | Windows 10 IoT Enterprise LTSC 2019 (64‑bit) |
| Interfaces | • 1 × slot for CFast • 1 × slot for SD/MMC • 1 × connection for ET 200SP BusAdapter PROFINET • 1 × 10/100/1000 Mbps Ethernet • 2 × USB 3.0 • 2 × USB 2.0 • 1 × DisplayPort |
| Documentation / Recovery | Documentation on CFast (restore image included on CFast) |
| Net Weight | 1.028 kg |
| Packaging Dimensions (W × H × D) | 14.20 × 18.90 × 9.20 cm |
| Country of Origin | Germany |
