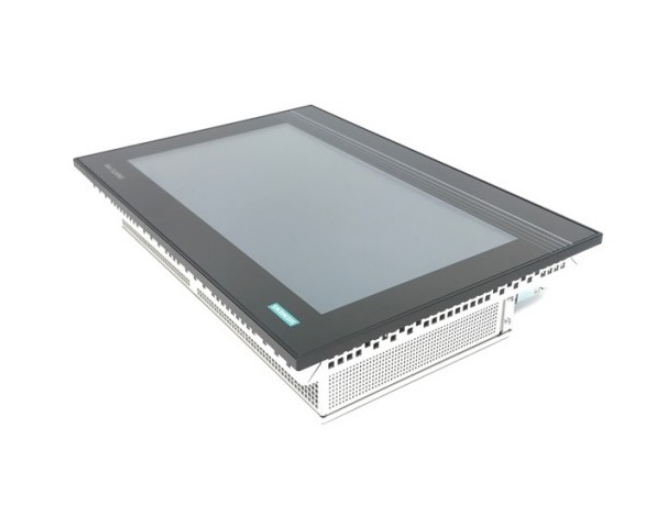

6AV7241-5BA00-0JA0
| Order Number | 6AV7241-5BA00-0JA0 |
| Product Type | SIMATIC IPC 477E |
| Display | 15″ touch (capacitive or resistive – refer to product datasheet) |
| Display Resolution | 1280 × 800 (WXGA) |
| Front Interface | USB port (front-accessible) |
| Rear Interfaces | 4 × USB (back panel) |
| Ethernet Ports (Standard) | 1 × Ethernet (10/100/1000 Mbit/s) |
| Processor | Intel Core i5-6442EQ |
| Additional Ethernet Ports | 3 × Gigabit Ethernet (supports IE/PN – Industrial Ethernet / PROFINET) |
| RAM | 4 GB |
| Serial Interface | Not equipped (without RS‑232 / RS‑485) |
| PCIe Slots | Not equipped (without PCIe) |
| Operating System | Not pre-installed (without operating system) |
| Mass Storage (Replaceable) | Not equipped (without replaceable mass storage) |
| Fixed Storage | 320 GB HDD (SATA interface) |
| SIMATIC Software | Not included (without SIMATIC software) |
| Power Supply | 24 V DC industrial power supply unit |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 7.1 Kg |
| Packaging Dimension | Not available |
| Country of origin | China |
| Quantity Unit | 1 Piece |
