6AV7241-5BB07-0GA0

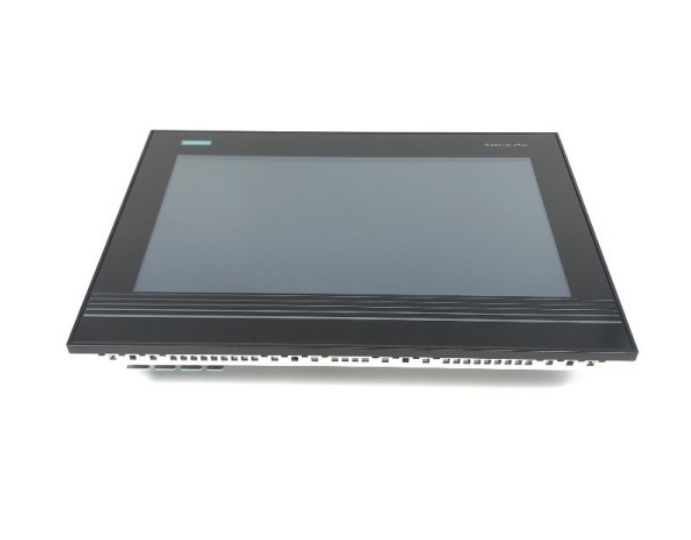

SIMATIC IPC 477E 15″ touch (1280 x 800); with front USB; 4 USB (back), Ethernet (10/100/1000); Core i5-6442EQ; 3x Gbit Ethernet (IE/PN); 8 GB; without RS 232/RS485; without PCIe; Windows 10 IoT Enterprise 2016 LTSB (64-bit) for Celeron, i3 and i5; Without replaceable mass storage; 480 GB solid-state drive SATA Without SIMATIC software; 24 V DC industrial power supply
| Order / Article Number | 6AV7241-5BB07-0GA0 |
| Product Name | SIMATIC IPC 477E |
| Display Size & Type | 15″ touchscreen |
| Display Resolution | 1280 x 800 (WXGA) |
| Front Interface | USB port (front accessible) |
| Rear Interfaces | 4 x USB, 1 x Ethernet (10/100/1000) |
| Processor | Intel Core i5-6442EQ |
| Integrated Network | 3 x Gigabit Ethernet (IE/PN compatible) |
| RAM | 8 GB |
| Serial Interface | Not equipped (without RS 232 / RS 485) |
| Expansion Slot | Not equipped (without PCIe) |
| Operating System | Windows 10 IoT Enterprise 2016 LTSB (64-bit) – licensed for Celeron, i3, and i5 processors |
| Replaceable Storage | Not included (without replaceable mass storage) |
| Fixed Storage | 480 GB SATA solid-state drive (SSD) |
| Pre-installed Software | None (without SIMATIC software) |
| Power Supply | 24 V DC industrial power supply |
| warranty | 1 YEAR |
| Net Weight (kg) | 7,100 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
