6AG4104-4DA02-0EB0
| Order Number | 6AG4104-4DA02-0EB0 |

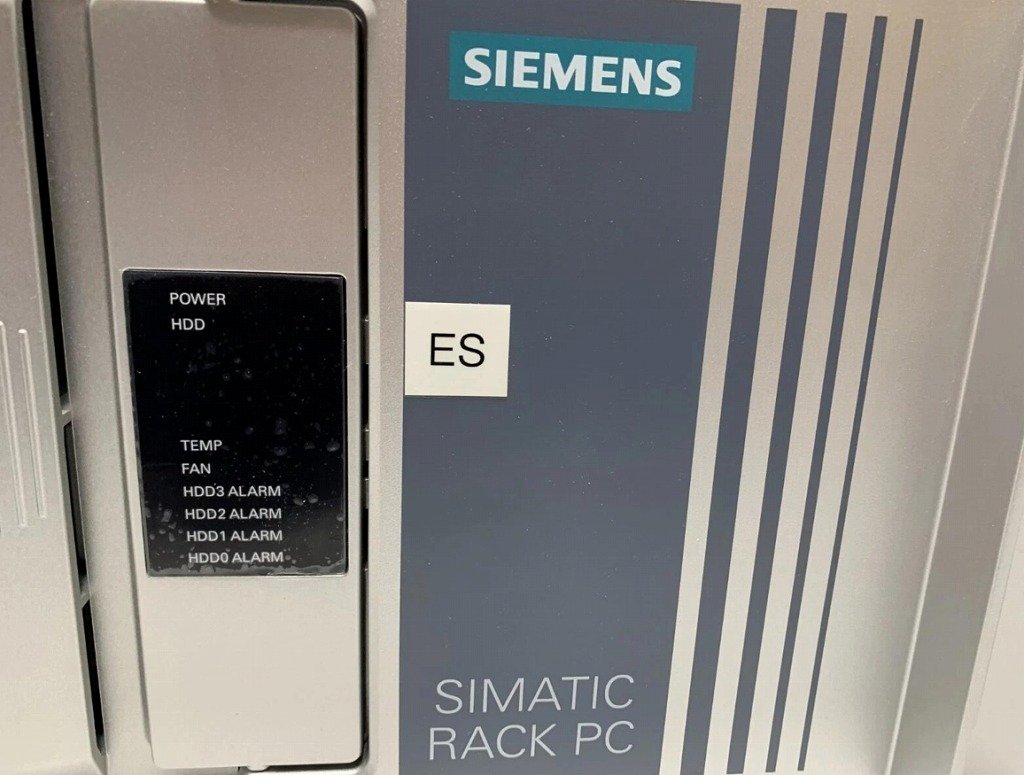

| Product Type | SIMATIC IPC547G (Rack PC, 19″, 4HU) |
| Front Interfaces | 2x USB 3.0 |
| Rear Interfaces | 2x Intel Gigabit Ethernet, 2x PS/2, Audio (line-out/mic), 1x DVI-D, 1x DisplayPort V1.2, 2x USB 3.0, 4x USB 2.0 |
| Expansion Slots | 7 slots total: 5x PCI Express, 2x PCI |
| Monitoring & Safety | Temperature and fan monitoring; Watchdog; Card retainer |
| Processor | Intel Core i7-6700 (4 cores / 8 threads, 3.4 GHz base frequency, 4.0 GHz turbo boost, 8 MB cache) |
| Chipset | Intel H110 |
| Memory (RAM) | 4 GB DDR4 SDRAM (1x 4 GB), Single-channel configuration |
| Storage (HDD) | 1x 1 TB internal HDD (vibration rating: 0.2 g; shock rating: 1 g) |
| Graphics | Onboard graphics (integrated) |
| Optical Drive | DVD +/-RW (slim type) |
| Power Supply | 100/240V AC industrial power supply unit |
| Chassis Finish | Enclosure blue chromated (passivated) |
| Operating System | Windows 10 Enterprise 2016 LTSB MUI (multilingual: English, German, French, Italian, Spanish), 64-bit (for Core i7/Xeon) |
| Included Software / Accessories | SIMATIC IPC Image & Partition Creator V3.5 (enclosed) |
| Mains Cable | Not included |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 17,000 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
