6AG4104-4DA21-0CX1
SIMATIC IPC547G (Rack PC, 19″, 4HU); Interfaces: 2x USB 3.0 on the front; 2x Intel Gigabit Ethernet, 2x PS/2, Audio on the rear side; 7 slots: 5x PCI Express, 2x PCI, Temperature and Fan monitoring; Watchdog; Card retainer Core i7-6700 (4C/8T, 3.4 (4.0) GHz, 8 MB cache); Mainboard: (chipset H110, 1x DVI-D, 1x display port V1.2, 2x USB 3.0 and 4x USB 2.0 on the rear side) 1x 1 TB HDD, internal, (0.2 g vibration, 1 g shock) 16 GB DDR4 SD-RAM (2x 8 GB), Dual Channel Enclosure blue chromated, 100/240V AC industrial power supply unit, without removable data storage media Graphics onboard Windows 10 Enterprise LTSB 2015, MUI (en/de/fr/it/es), 64 bit without expansions (software) Power supply cable Europe
| Product Designation | 6AG4104-4DA21-0CX1 |

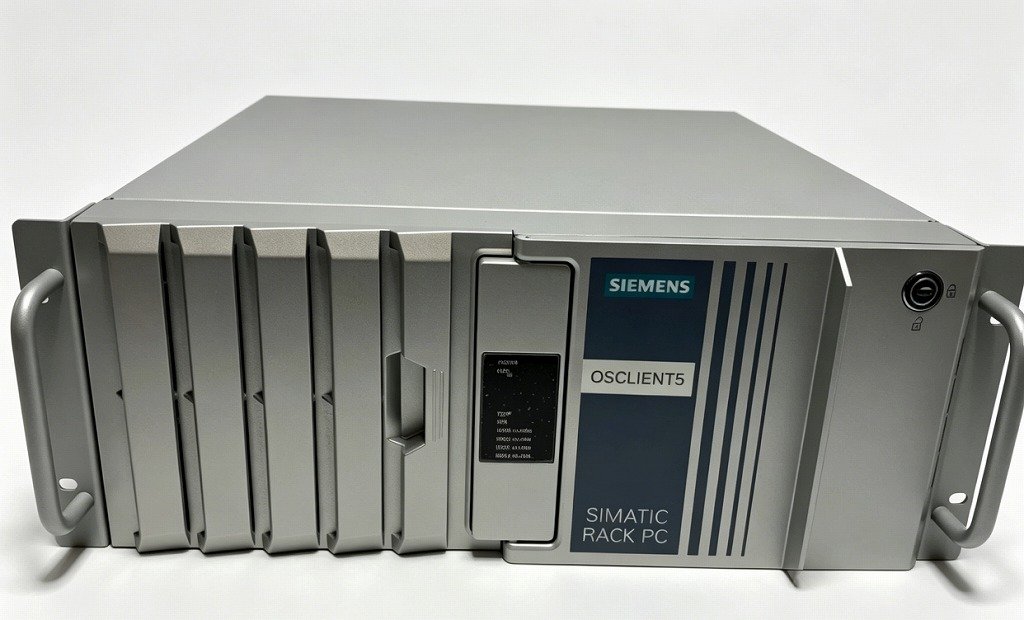

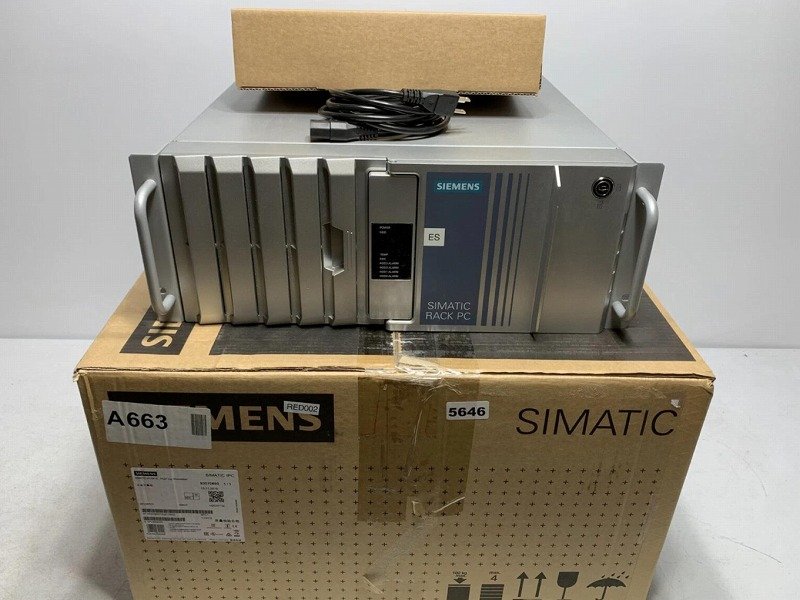

| Device Type | SIMATIC IPC547G (Rack PC, 19″, 4 HU) |
| Front Interfaces | 2x USB 3.0 |
| Rear Interfaces | 2x Intel Gigabit Ethernet, 2x PS/2, Audio |
| Expansion Slots (Total) | 7 slots: 5x PCI Express, 2x PCI |
| Monitoring & Safety | Temperature and fan monitoring; Watchdog; Card retainer |
| Processor | Core i7-6700 (4 cores / 8 threads, 3.4 GHz base / 4.0 GHz turbo, 8 MB cache) |
| Motherboard | Chipset: H110; Video outputs: 1x DVI-D, 1x DisplayPort v1.2; Rear USB: 2x USB 3.0, 4x USB 2.0 |
| Primary Storage | 1x 1 TB HDD, internal (vibration resistance: 0.2 g; shock resistance: 1 g) |
| Memory (RAM) | 16 GB DDR4 SDRAM (2x 8 GB), Dual Channel |
| Chassis Finish | Enclosure blue chromated |
| Power Supply | 100/240 V AC industrial power supply unit |
| Removable Storage | Without removable data storage media |
| Graphics | Onboard graphics (integrated) |
| Operating System | Windows 10 Enterprise LTSB 2015, MUI (English, German, French, Italian, Spanish), 64-bit |
| Software Expansions | Without expansions (software) |
| Accessory Included | Power supply cable (Europe) |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 17,000 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
