| Order No. |
6AG4104-4HF24-2CC2 |
| Product Name |
SIMATIC IPC547G (Rack PC, 19″, 4HU) |
| Front Interfaces |
2x USB 3.0 |

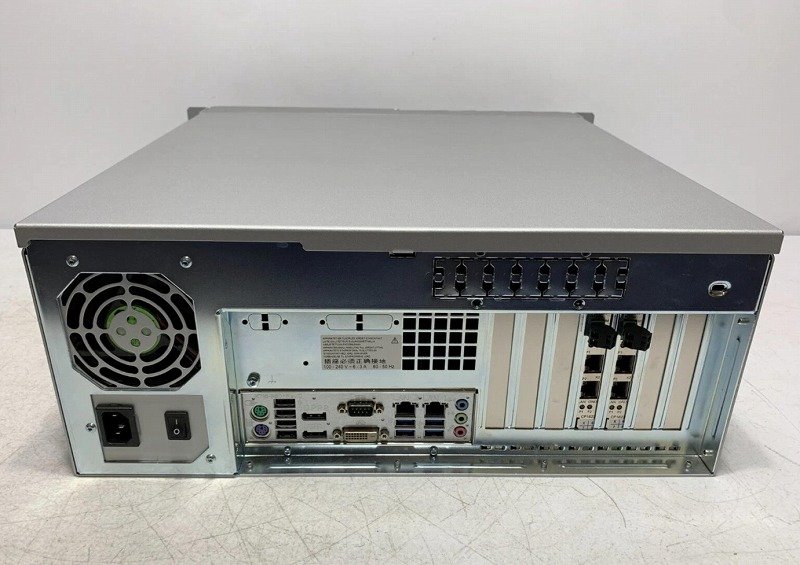

| Rear Interfaces |
2x Intel Gigabit Ethernet, 2x PS/2, Audio |
| Expansion Slots |
7 slots total: 5x PCI Express, 2x PCI |
| Monitoring Functions |
Temperature and Fan monitoring; Watchdog; Card retainer |
| Processor |
Intel Core i7-6700 (4 cores / 8 threads, 3.4 GHz base frequency, 4.0 GHz Turbo Boost, 8 MB cache, supports Intel iAMT) |
| Mainboard / Chipset |
Intel C236 chipset; 1x DVI-D, 2x DisplayPort V1.2, 4x USB 3.0 (rear), 4x USB 2.0 (rear), 1x USB 2.0 (internal), 1x COM 1 (RS-232); RAID functionality onboard |
| RAID Configuration |
RAID 1 |
| Internal Storage |
1 TB total (2x 1 TB HDD) |
| Shock / Vibration Tolerance (operational) |
0.2 g vibration, 1 g shock |
| RAM |
16 GB DDR4 SDRAM (2x 8 GB), Dual Channel |
| Chassis Finish |
Blue chromated enclosure |
| Power Supply |
2x 100/240V AC redundant industrial power supply unit |
| Optical Drive |
DVD +/- RW (slim type) |
| Graphics Card |
PCIe x16 graphics card, dual-head capable (2x VGA or 2x DVI-D), 1 GB video memory |
| Pre-installed OS |
Windows 10 Enterprise LTSB 2015, Multilingual User Interface (MUI) – English, German, French, Italian, Spanish, 64-bit |
| Included Software |
SIMATIC IPC DiagMonitor V5.0 and Image & Partition V3.5 (enclosed) |
| Power Cable |
USA type power supply cable included |
| warranty |
1 YEAR |
| Net Weight (kg) |
17,000 Kg |
| Packaging Dimension |
Not available |
| Country of origin |
Germany |
| Quantity Unit |
1 Piece |
