6ES7660-8BQ01-1BA0

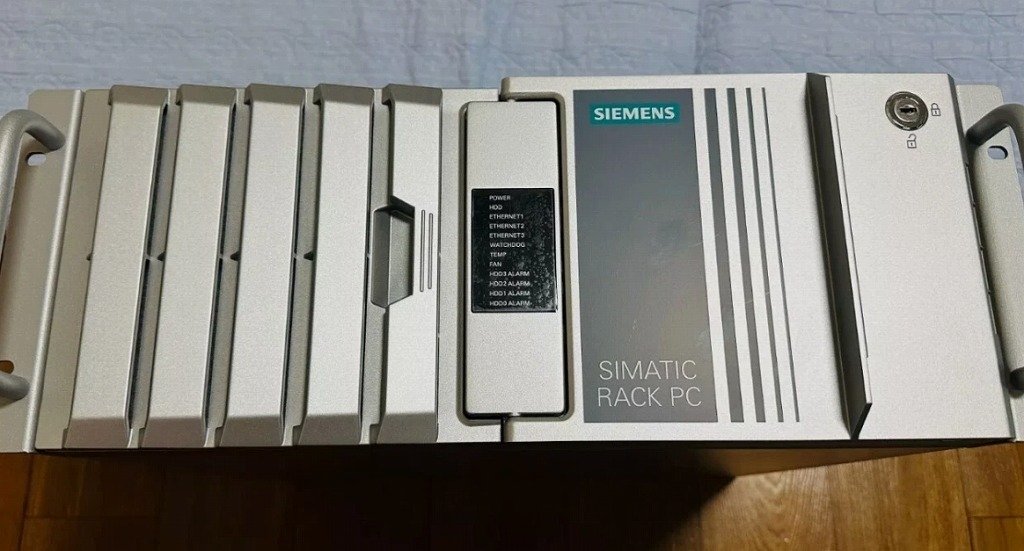

SIMATIC process control system IPC547J; (rack PC, 19, 4 U), interfaces: 3x Gbit LAN (RJ45), 1x DVI-D, 2x display port; 1x COM, audio; 6x USB 3.1 Gen. 2 (2x type C, 4x type A) on the rear side, 2x USB3.1 Gen.1 (type A) on the front, 2x USB 2.0 internal; 7 slots: 5x PCIe, 2x PCI, internal, temperature and fan monitoring watchdog, card retainer; Core i5-10500E (6C/12T, 3.1 (4.2) GHz, 12 MB cache), MB (Chipset W480E), iAMT, PCS 7 ES/OS Single Station, OS client; 960 GB SSD 2.5 SATA; drive support for internal installation, 0.5 G vibration, 5 g shock; 16 GB DDR4 SDRAM (2x 8 GB), dual channel; PCS 7 V9.1 SP2 preinstalled; Windows 10 IoT Enterprise 2019 LTSC, MUI (en, de, fr, it, sp, zh), 64-bit, with restore USB flash drive, (for Processor Core i3 / i5); enclosure blue chromated, without expansions; 100/240 V AC industrial power supply unit, without power supply cord;
| Order Number | 6ES7660-8BQ01-1BA0 |
| Product Designation | SIMATIC Process Control System IPC547J |
| Chassis Type | Rack PC (19″, 4 U) |
| Rear Interfaces | 3x Gbit LAN (RJ45), 1x DVI-D, 2x DisplayPort, 1x COM (Serial), Audio, 6x USB 3.1 Gen. 2 (2x Type-C, 4x Type-A) |
| Front Interfaces | 2x USB 3.1 Gen. 1 (Type-A) |
| Internal Interfaces | 2x USB 2.0 |
| Expansion Slots | 7 slots total: 5x PCIe, 2x PCI |
| Monitoring Features | Internal temperature and fan monitoring watchdog, card retainer |
| Processor | Intel Core i5-10500E (6 cores / 12 threads, 3.1 GHz base / 4.2 GHz turbo, 12 MB cache) |
| Motherboard / Chipset | MB (Chipset W480E), iAMT |
| Intended Application | PCS 7 ES/OS Single Station, OS Client |
| Storage (SSD) | 960 GB SSD, 2.5″ SATA, drive support for internal installation; mechanical tolerance: 0.5 G vibration, 5 G shock |
| System Memory (RAM) | 16 GB DDR4 SDRAM (2x 8 GB), dual-channel configuration |
| Preinstalled Software | PCS 7 V9.1 SP2 |
| Operating System | Windows 10 IoT Enterprise 2019 LTSC, MUI (English, German, French, Italian, Spanish, Chinese), 64-bit, includes restore USB flash drive (for Core i3 / i5 processors) |
| Enclosure Finish | Blue chromated |
| Expansion Status | Without expansions (base configuration) |
| Power Supply | 100/240 V AC industrial power supply unit |
| Power Cord | Not included |
| warranty | 1 YEAR |
| Net Weight (kg) | 17,000 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
