| Order Number | 6AV7261-0GC10-1AA0 |

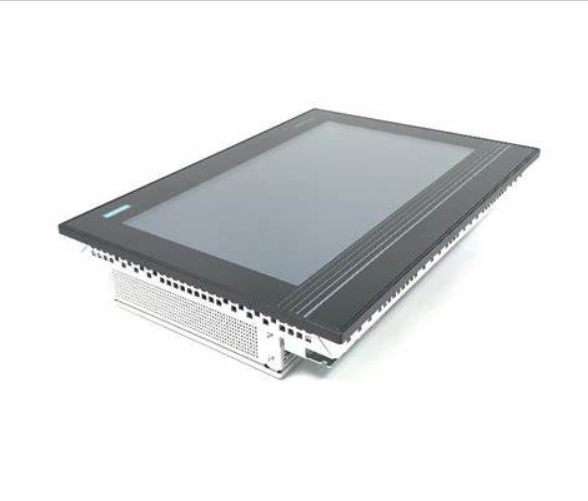

| Product Name | SIMATIC IPC677E (Panel PC) |
| Display | 19″ Multitouch (1920×1080) |
| Graphics | UHD graphic onboard |
| Display Outputs | DP / DVI-D |
| Ethernet | 3x Gigabit Ethernet (IE/PN) |
| USB Ports | 6x USB 3.1 Gen. 2 |
| Serial Ports | 1x serial (COM 1) |
| RAID | RAID controller onboard |
| Monitoring Features | Watchdog, temperature and fan monitoring |
| Processor | Core i7-8700 (6C/12T, 3.2(4.6) GHz, 12 MB cache, VT-d, AMT) |
| Storage | SSD 2.5″ SATA 480 GB internal |
| Memory (RAM) | 8 GB DDR4-2666 (2×4) |
| Power Supply | 24 V DC industrial power supply |
| Operating System | Windows 10 Enterprise 2016 LTSB, 64 bit, MUI (en, de, fr, it, es) |
| Processor Compatibility Note | For Core i7 |
| Software Extension | Without extension (software) |
| Hardware Extension | Without extension (HW) |
| Expansion Slots | 2x PCI |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 17.00 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
