| Order Number | 6ES7660-4AC11-2AL0 |
| Product Name | SIMATIC PCS 7 |

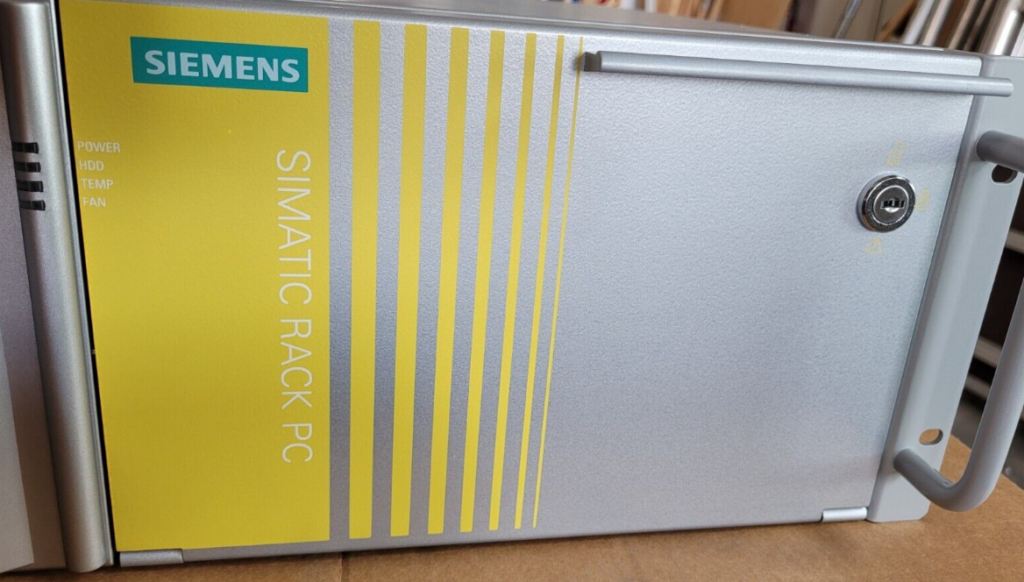

| Industrial Workstation IPC547E | |
| Chassis Type | Rack PC, 19″, 4HU |
| Rear Interfaces | 2x Gbit LAN (RJ45), 1x DVI-I, 2x Display Port, 1x COM, 2x PS/2, Audio, 2x USB 3.0, 6x USB 2.0 |
| Front Interfaces | 2x USB 3.0 |
| Internal Interfaces | 1x USB 2.0 |
| Expansion Slots | 7 slots total: 2x PCIe x16, 1x PCIe x8, 4x PCI |
| Monitoring Features | Temperature and fan monitoring, Watchdog, card retainer |
| Processor | Pentium Dual Core G3420 (2 cores / 2 threads, 3.3 GHz, 3 MB cache) |
| System Configuration | ES/OS Single Station |
| Storage (RAID) | RAID1, 1 TB (2x 1 TB HDD SATA, data mirroring) |
| Shock & Vibration | Internal: 0.2 G vibration, 1 G shock |
| Memory (RAM) | 8 GB DDR3 SDRAM (2x 4 GB), Dual Channel |
| Industrial Communication | Industrial Ethernet (CP1623) |
| Pre-installed Software | PCS 7 V8.2, Windows 7 Ultimate, 64-bit, MUI (en/de/fr/it/es/cn) |
| Enclosure Finish | Painted |
| Optical Drive | DVD +/-RW (slim) |
| Multi-Monitor Support | Multi monitor for 2 screens via onboard interfaces + 1x adapter cable (Display Port to DVI-D) |
| Power Supply | 110/240V industrial power supply unit with NAMUR |
| Power Cable | Europe |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 15.00 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
