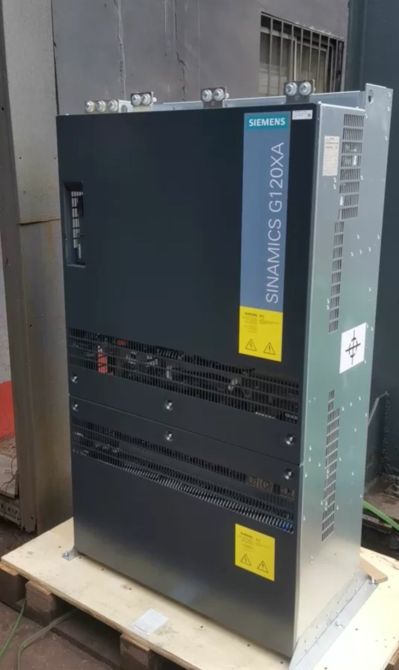

6SL3220-2YD56-0CB0
| Technical Specifications for SIEMENS 6SL3220-2YD56-0CB0 | |
| Parameter | Specification |
| Product Name | SINAMICS G120XA Inverter |
| Rated Power | 315 kW (350 HP / 400 HP depending on regional standards) |
| Supply Voltage (Rated) | 3 AC 380 V … 440 V |
| Supply Voltage (Tolerance) | -20 % … +10 % |
| Mains Frequency | 50/60 Hz |
| Output Current (Rated) | 590 A |
| Input Current (Rated) | 617 A |
| Protection Class | IP20 / UL Open Type |
| EMC Filter | Integrated Class A C3 Filter |
| Control Modes | V/f control, Vector control (SVC) |
| Communication | Integrated: MODBUS RTU, BACnet MS/TP, USS |
| Digital Inputs (DI) | 6 |
| Digital Outputs (DO) | 4 |
| Analog Inputs (AI) | 2 |
| Analog Outputs (AO) | 2 |
| Overshoot Protection | 110% for 60s / 600s |
| Frame Size | FSH |
| Dimensions (H x W x D) | 1487.5 x 548 x 410 mm |
| Net Weight | Approx. 132 kg |
| Operating Temperature | -10 °C … +40 °C (Full load) |
| +40 °C … +50 °C (Derating required) | |
