6ES7660-4FA08-1AB4
| Order No. | 6ES7660-4FA08-1AB4 |

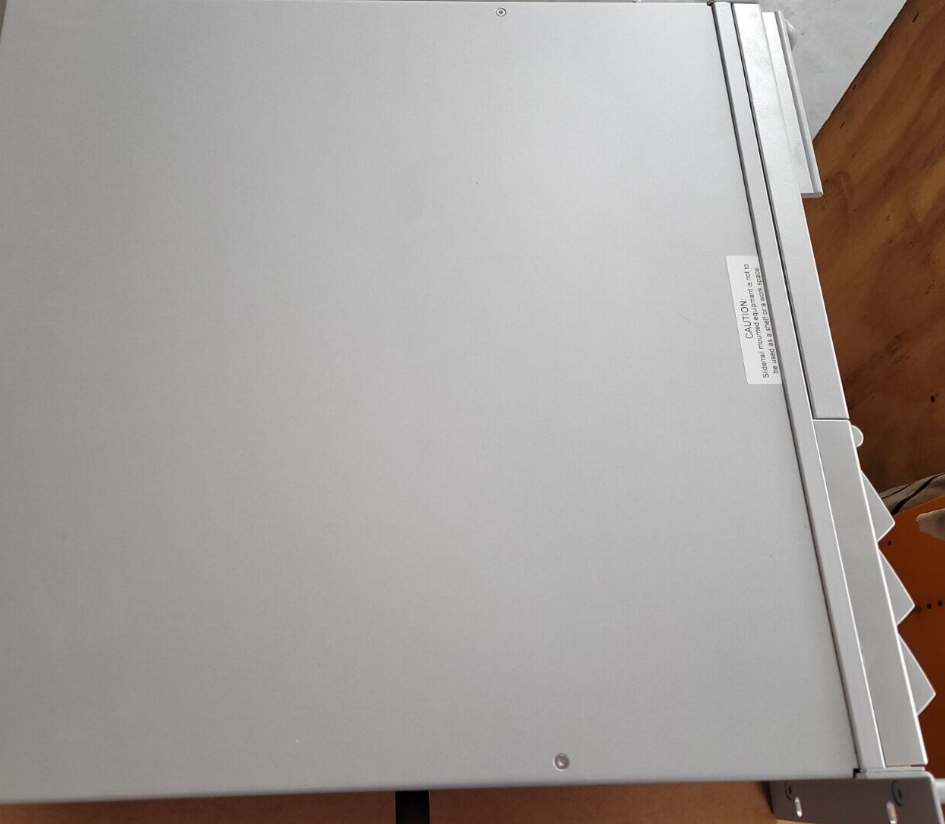

| Product Name | SIMATIC PCS 7 Industrial Workstation IPC547E |
| Chassis Type | Rack PC, 19″, 4HU |
| Rear Interfaces | 2x Gbit LAN (RJ45), 1x DVI-I, 2x Display Port, 1x COM, 2x PS/2, Audio, 2x USB 3.0, 6x USB 2.0 |
| Front Interfaces | 2x USB 3.0 |
| Internal Interfaces | 1x USB 2.0 |
| Expansion Slots | 7 slots total: 2x PCIe x16, 1x PCIe x8, 4x PCI |
| Monitoring Features | Temperature and fan monitoring, Watchdog |
| Additional Hardware | Card retainer |
| Processor | Core I5-4570S (4C/4T, 2.9 (3.6) GHz), 6 MB cache, IAMT |
| OS Client | Included |
| Storage | 1x 500 GB HDD SATA, internal |
| Shock & Vibration | 0.2 G vibration, 1 G shock |
| Memory (RAM) | 4 GB DDR3 SDRAM (2x 2 GB), Dual Channel |
| System Bus Communication Cards | Without additional system bus communication cards |
| Pre-installed Software | PCS 7 V8.1 SP1 |
| Operating System | Windows 7 Ultimate, 64-bit, MUI (en/de/fr/it/es/cn) |
| Enclosure | Unpainted |
| Optical Drive | Without optical drive |
| Multi-Monitor Support | + Multi monitor 2 screens via onboard interfaces + 1x adapter cable (Display Port to DVI-D) |
| Power Supply | 110/240V industrial power supply unit with NAMUR |
| Power Cable | Power supply cable, Italy |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 15.00 Kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
