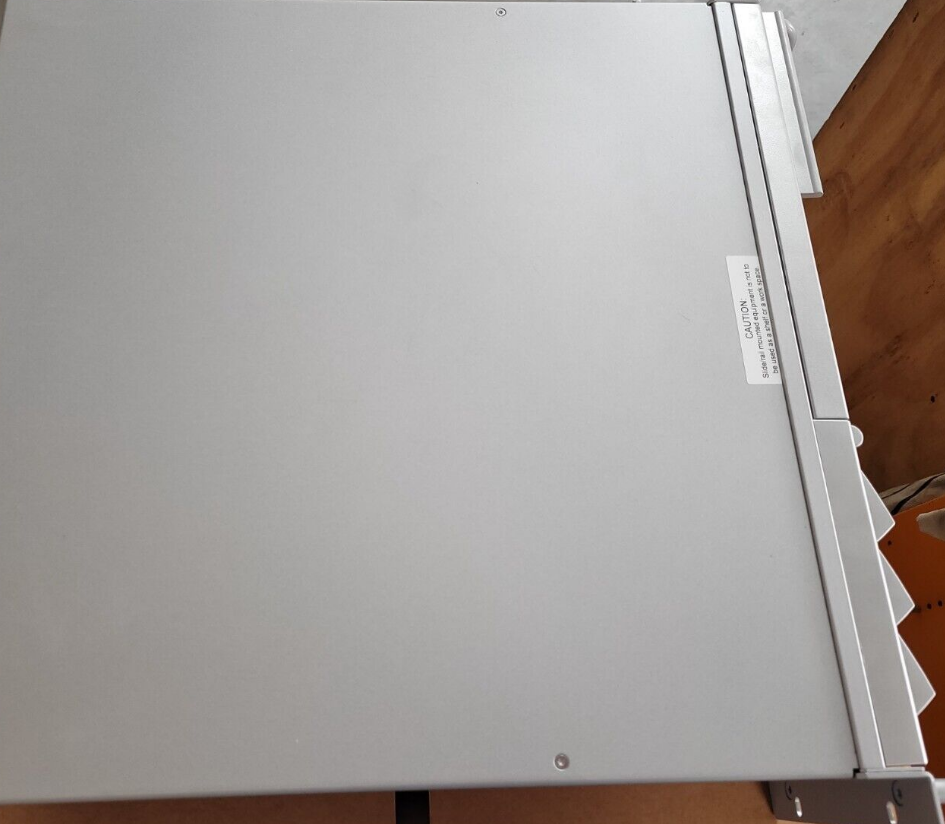

6ES7660-5DC11-3BE0
***no longer available*** SIMATIC PCS 7 Industrial Workstation IPC647D; (rack PC, 19″, 2 U), interfaces: 2x Gbit LAN (RJ45), 1x DVI-I, 2x display port; 1x COM, 2x PS/2, audio; 2x USB 3.0; 2x USB 2.0 on rear side, 1x USB 3.0; 1x USB 2.0, front-side; 1x USB 3.0 internal; temperature and fan monitoring; watchdog; card retainer; Core I5-4570TE (2C/4T, 2.7 GHz, 4 MB cache, TB, VT-D, AMT); ES/OS Single Station; RAID1, 1 TB (2x 1 TB HDD SATA, data mirroring); internal, 0.5 G vibration, 5 G shock; 8 GB DDR3 SDRAM (2 x 4 GB), Dual Channel; Industrial Ethernet (CP1623); PCS 7 V9.0 SP2 pre-installed Windows 10 IoT Enterprise 2015 LTSB, 64 bit, MUI (en, de, fr, it, es, cn) bus module 4 slots: 2x PCI, 2x PCIe x16, (8 lanes); DVD +/-RW (slim); + multi monitor with 2 screens via onboard interfaces + 1x adapter cable (display port according to DVI-D); 100/240V industrial power supply unit with NAMUR; power supply cable Europe
| Order Number | 6ES7660-5DC11-3BE0 |
| Product Family | SIMATIC PCS 7 Industrial Workstation |
| Product Type | IPC647D Rack PC (19″, 2 U) |
| Processor | Intel Core i5‑4570TE (2 cores / 4 threads, 2.7 GHz, 4 MB cache, Turbo Boost, VT‑d, AMT) |
| System Memory (RAM) | 8 GB DDR3 SDRAM (2 × 4 GB), Dual Channel |
| Storage Configuration | RAID1: 2 × 1 TB SATA HDD (data mirroring), internal |
| Shock / Vibration Ratings | 0.5 G vibration, 5 G shock |
| Graphics Interfaces | 1 × DVI‑I, 2 × DisplayPort |
| LAN Interfaces | 2 × Gbit LAN (RJ45) |
| Industrial Ethernet | CP1623 (integrated) |
| Serial Interface | 1 × COM |
| PS/2 Ports | 2 × PS/2 |
| USB Interfaces | • 2 × USB 3.0 (rear) • 2 × USB 2.0 (rear) • 1 × USB 3.0 (front) • 1 × USB 2.0 (front) • 1 × USB 3.0 (internal) |
| Audio | Integrated audio interface |
| Monitoring & Security | Temperature and fan monitoring; watchdog timer; card retainer |
| Expansion Bus Module | 4 slots: 2 × PCI, 2 × PCIe x16 (8 lanes) |
| Optical Drive | DVD ± RW (slim) |
| Multi-Monitor Support | Multi-monitor with 2 screens via onboard interfaces + 1 × adapter cable (DisplayPort to DVI‑D) |
| Power Supply | 100/240 V industrial power supply unit with NAMUR compliance (includes Europe power cable) |
| Operating System | Windows 10 IoT Enterprise 2015 LTSB, 64‑bit, MUI (Multilingual User Interface) – supported languages: English, German, French, Italian, Spanish, Chinese |
| Pre‑installed Software | PCS 7 V9.0 SP2 (ES/OS Single Station) |
| Net Weight | 15.000 kg |
| Packaging Dimensions | Not available |
| Country of Origin | Germany |
