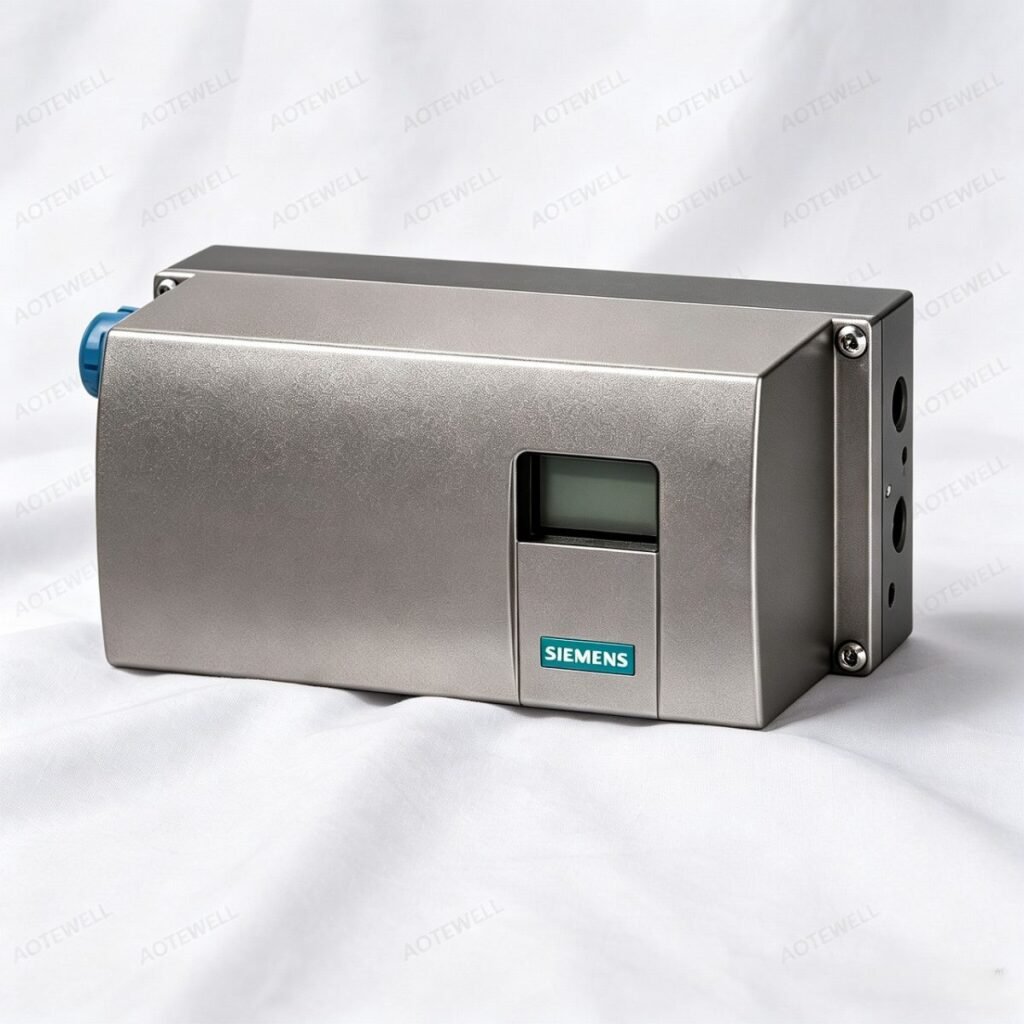

SIEMENS SIPART PS2 6DR50110NG310AA0
Country of origin : Germany
Net Weight (kg) : 1.300KG
| Item | Detailed Specification |
|---|---|
| Article No. (MLFB) | 6DR5011-0NG31-0AA0 |
| Full Product Name | SIPART PS2 Smart Electropneumatic Positioner |
| Applicable Actuator Type | Pneumatic linear actuators & part-turn rotary actuators |
| Control Signal Mode | 2-wire 4…20 mA analog signal control, single-acting pneumatic output |
| Enclosure Material & Size | Small aluminum housing, equipped with lockable slipping clutch; no explosion-proof certification; built-in transparent inspection window |
| Electrical Connection Thread | M20×1.5 |
| Pneumatic Connection Thread | G 1/4 |
| Pre-installed Modules | 1. Limit monitor contact module
2. Position feedback module (4 … 20 mA analog output) |
| Attached Documentation | Brief operating instructions in German / English / Chinese |
| Excluded Accessories | No mounted pressure gauge block |
| Core Control Principle | Non-contact wear-free magnetic position detection (NCS) |
| Communication Base Signal | 4–20 mA two-wire analog (HART protocol supported as standard) |
| Pneumatic Supply Medium | Dry, filtered compressed air, nitrogen, CO₂ or inert gas (ISO 8573-1 Class 2 air quality required) |
| Supply Air Pressure Range | 1.4 … 7 bar |
| Standby Air Consumption | Max. 0.01 Nm³/h under steady control state |
| Stroke & Angle Adjustment Range | Linear stroke: 3–130 mm; Rotary angle: 30°–100° |
| Operating Ambient Temperature | -30 °C ~ +80 °C |
| Protection Class | IP54 |
| Key Built-in Functions | Auto initialization, valve signature diagnosis, partial stroke test, split-range control, adjustable dead band, fail-safe depressurization upon signal loss |
| Mechanical Design Feature | Lockable slipping clutch for flexible mounting to all standard valve yokes |
| Delivery Scope | Positioner main unit + pre-installed limit contact & position feedback modules + multilingual quick guide; pressure gauge block excluded |
| Country of Origin | Germany |
| Main Industrial Applications | Chemical, petrochemical, water treatment, HVAC, food & beverage, energy pipeline process valve control |
