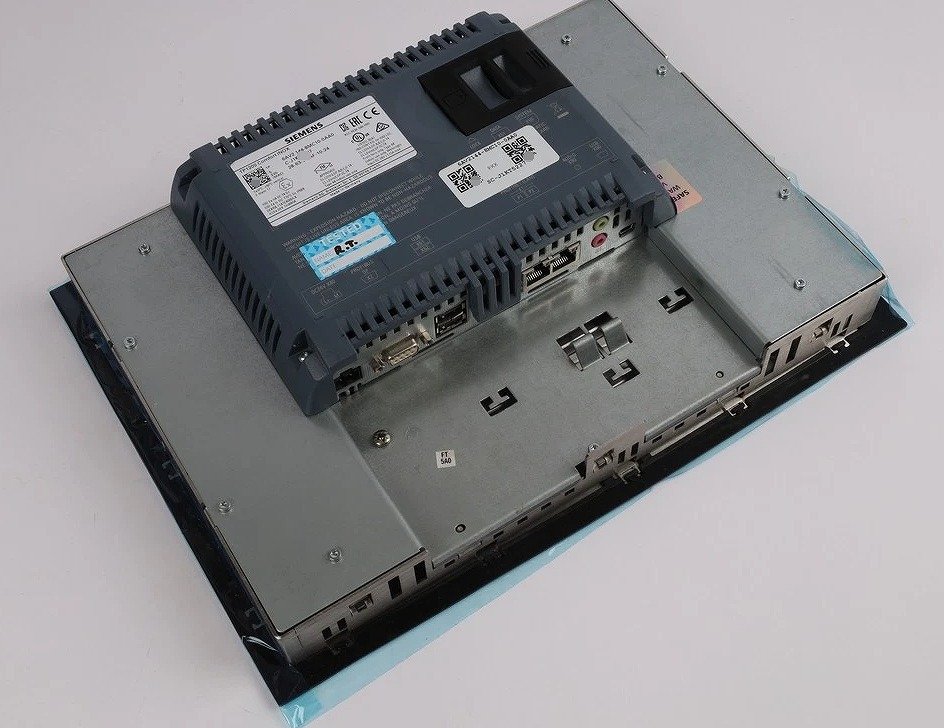

6AV2144-8MC10-0AA0 (SIMATIC HMI TP1200 Comfort INOX) English Technical Specifications
The 6AV2144-8MC10-0AA0 is a SIMATIC HMI TP1200 Comfort INOX touch panel with a 12″ 1280×800 TFT display, 24 V DC input (19.2-28.8 V range), 0.85 A rated current, 20 W typical active power, 12 MB configuration memory, PROFINET/MPI/PROFIBUS DP interfaces, stainless steel front (IP66K), and Windows CE 6.0. Below is the detailed English specification table covering electrical and key technical parameters:
| Parameter | Value |
|---|---|
| Order Number | 6AV2144-8MC10-0AA0 |
| Product Type | SIMATIC HMI TP1200 Comfort INOX (Stainless Steel Front) |
| Power Supply | DC 24 V (permissible range: 19.2–28.8 V DC) |
| Rated Input Current | 0.85 A (24 V DC, typical) |
| Inrush Current (I²t) | 0.5 A²·s |
| Active Power Input | Typical: 20 W |
| Display | 12″ widescreen TFT; Resolution 1280×800 pixels; 16,777,216 colors; Backlight MTBF 80,000 h (25 °C), dimmable 0-100% |
| Memory | 12 MB configuration memory; Windows CE 6.0; Hardware real-time clock (backup: ~6 weeks) |
| Interfaces | 1. 1× PROFINET (2-port switch, 10/100 Mbps); 2. 1× MPI/PROFIBUS DP (RS-485); 3. 2× USB 2.0 (1× Type A, 1× Mini B) |
| Touch Function | 40 touch cells; Resistive touchscreen |
| Protection Rating | Front: IP66K; Housing: IP20; NEMA 4X compliant |
| Operating Temperature | 0-50 °C (vertical installation); 0-40 °C (tilt angle) |
| Dimensions (W×H×D) | 330 mm×241 mm×67 mm (front width×height×installation depth) |
| Weight | Approx. 3.5 kg |
| Certifications | CE, UL, FM, ATEX, IECEx, RoHS compliant |
| Configuration Software | WinCC Comfort V11 or higher |
