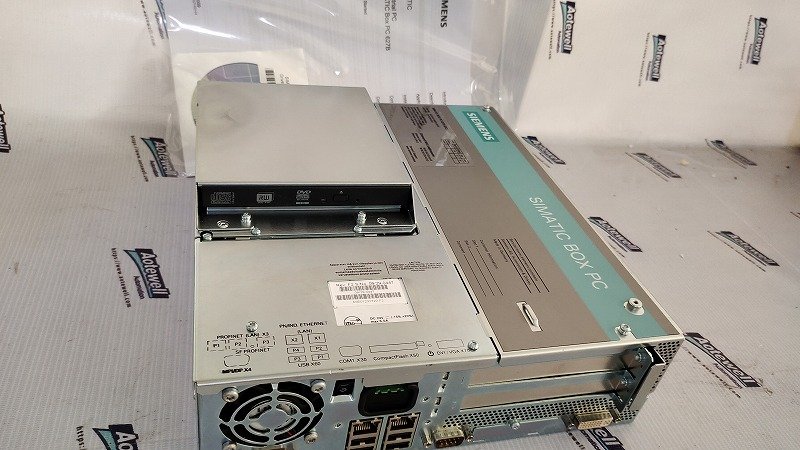

This is a discontinued industrial PC from Siemens SIMATIC Box PC 627B series. Below are complete, precise electrical, mechanical, and performance specifications.
1. Core Electrical Parameters (Voltage, Current, Power)
| Parameter | Specification |
|---|---|
| Part Number | 6ES7647-6BD00-0AX0 |
| Product Type | SIMATIC Box PC 627B (Industrial PC) |
| AC Input Voltage | 100–240 V AC autorange, -15% / +10% tolerance |
| AC Input Frequency | 50/60 Hz (47–63 Hz) |
| AC Input Current | Steady-state: up to 2.3 A; Inrush: up to 50 A for 1 ms |
| DC Input Voltage (Optional) | 24 V DC isolated (SELV), 20.4–28.8 V DC (-15% / +20%) |
| DC Input Current | Continuous: up to 9 A; Startup: up to 14 A for 30 ms |
| Max Power (AC) | 190 W |
| Max Power (DC) | 210 W |
| Typical Power Consumption | ~80–120 W (full load) |
| Standby Power | < 5 W |
| Power Fail Bridging | NAMUR-compliant: up to 20 ms at 93–264 V AC (max 10 events/hour) |
| Internal DC Outputs | +5 V / 16.5 A (18.5 W peak); +3.3 V / 8.5 A; +12 V / 6.5 A (8 A peak); -12 V / 0.3 A |
| Internal Power Limits | +5 V + +3.3 V total ≤ 90 W; All rails total ≤ 150 W |
| Protection Class | Class I (IEC 61140) |
| Safety Standards | AC: EN 60950-1, UL60950-1; DC: EN 61131-2, UL508 |
2. Hardware & Performance
| Parameter | Specification |
|---|---|
| CPU | Intel Core 2 Duo T5500 (1.66 GHz, 2 MB L2 cache, 667 MHz FSB) |
| Chipset | Mobile Intel 945GM Express + ICH7R |
| RAM | 256 MB DDR2 667 SODIMM (expandable up to 4 GB) |
| Graphics | Onboard Intel GMA 950, 8–128 MB shared memory; DVI-I (analog/digital) |
| Storage | 160 GB 3.5″ SATA HDD; Front CompactFlash slot (no CF included) |
| RAID | Onboard RAID 0/1 controller |
3. Interfaces
| Interface | Quantity & Type |
|---|---|
| Ethernet | 2 × 10/100/1000 Mbit/s RJ45 (teaming capable) |
| USB | 4 × USB 2.0 (high-current, high-speed) |
| Serial | 1 × COM1 (RS-232) |
| Video | 1 × DVI-I (VGA via adapter) |
| Expansion | 2 × PCI slots (265 mm + 175 mm) or 1 × PCI + 1 × PCIe x4 |
4. Mechanical & Environmental
| Parameter | Specification |
|---|---|
| Dimensions | 298 × 301 × 80 mm (without DVD); 298 × 301 × 100 mm (with DVD) |
| Weight | ~7 kg |
| Mounting | Wall, DIN-rail, cabinet mounting |
| Operating Temperature | 5–45 °C (full config); 5–50 °C (≤20 W PCI load); 5–55 °C (≤10 W PCI load) |
| Storage Temperature | -20–60 °C |
| Humidity | 5–80% RH (non-condensing) |
| Vibration (Operational) | 10–58 Hz: 0.75 mm; 58–500 Hz: 9.8 m/s² (1 g) |
| Shock (Operational) | 50 m/s² (5 g), 11 ms |
| IP Rating | IP20 (front/rear) |
| Noise | < 55 dB(A) (DIN 45635-1) |
5. Monitoring & Diagnostics
| Feature | Details |
|---|---|
| Watchdog | Programmable timeout; auto-restart on fault |
| Temperature | Over/under temperature monitoring; user alerts |
| Fan | Speed monitoring; fault indication |
| Status | Dual 7-segment displays + 2 × 2-color LEDs (user-programmable) |
| Remote | SIMATIC PC DiagMonitor (SNMP, OPC, web server) |
