| Parameter Item | Specification |
|---|---|
| Part Number | 6AV7250-3FC03-3DA0 |

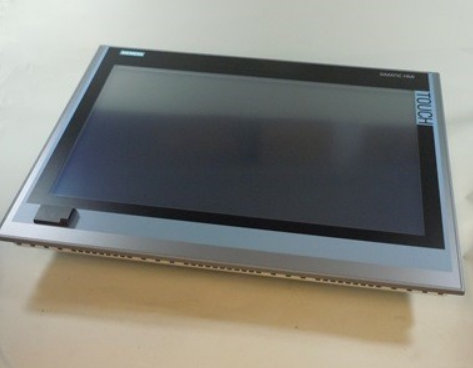

| Full Model Name | SIMATIC IPC 477D pro |
| Series | IPC 477D |
| Protection Class | Fully protected IP65 |
| Display | 19″ multi-touch screen, resolution 1366×768 |
| Mounting Design | Flange at bottom, compatible with stand & expansion elements |
| USB Ports | 4 USB ports at rear, no front USB interface |
| CPU Processor | Core I3-3217UE (2C/4T, 1.6 GHz, 3 MB cache) |
| System Memory | 4 GB |
| Network Interfaces | 2×Gbit Ethernet (IE/PN), 10/100/1000 Mbps |
| Serial Communication Port | 1×RS-232 |
| Storage Media | Dual 8 GB CFast cards; operable with supporting software without internal mass storage |
| Operating System | WIN Embedded Standard 7 P SP1, English, 32-bit, multi-touch supported |
| SIMATIC Automation Software | Not included |
| Industrial Power Supply | 24 V DC |
| Product Status | No longer available |
| Country of Origin | Germany |
| Warranty Period | 1 year |
