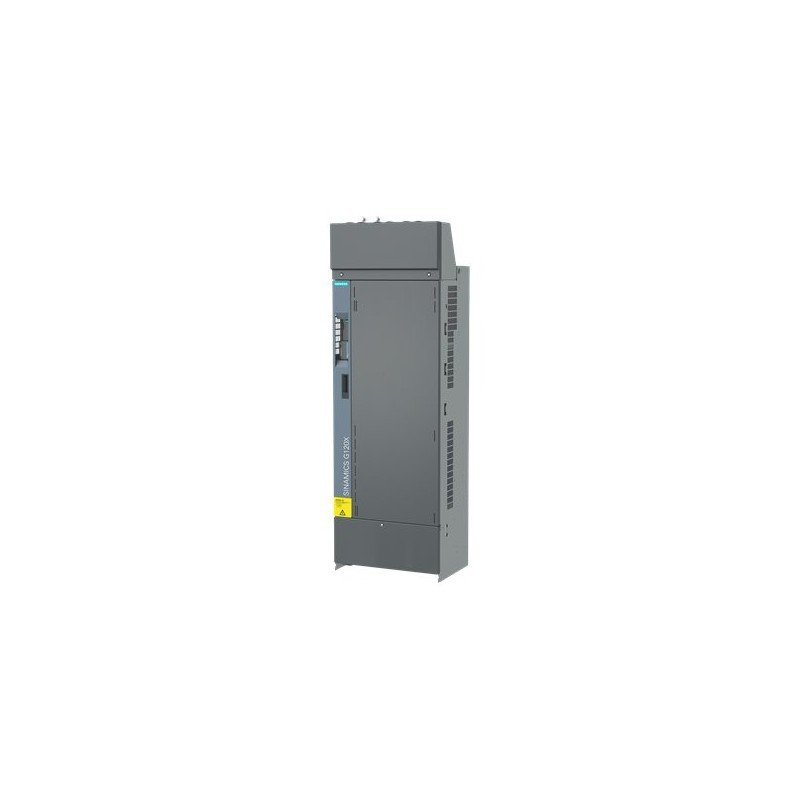

6SL3220-1YD56-0CB0
| Parameter | Specification |
| Product Code | 6SL3220-1YD56-0CB0 |
| Product Name | SINAMICS G120XA |
| Rated Power | 315 kW |
| Supply Voltage | 3AC 380V -20% to 440V +10% |
| Integrated Filter | Class A C3 filter |
| Overload Capability | 110% for 60s per 600s |
| Operator Panel | Without Operator Panel |
| Integrated Fieldbus | MODBUS RTU, BACnet MS/TP, USS |
| Digital Inputs (DI) | 6 |
| Digital Outputs (DQ) | 4 |
| Analog Inputs (AI) | 2 |
| Analog Outputs (AQ) | 2 |
| Motor Temperature Protection | 1 x Mot_t (PTC/KTY84) |
| Protection Rating | IP20 |
| Frame Size | FSH |
| Dimensions (H x W x D) | 1487.5 x 548 x 410 mm |
| Protection Level | 1 YEAR |
| Net Weight (kg) | 132 kg |
| Packaging Dimension | Not available |
| Country of origin | Germany |
| Quantity Unit | 1 Piece |
