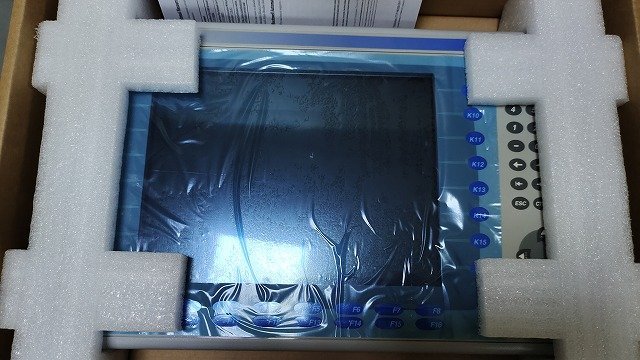

Technical Specifications for 2711P-B10C4D1
Panelview Plus 1000 Touchscreen/Keypad 10.4 in Color Display Ethernet, RS-232, and two USB DC Power Logic Module with 64MB
Brand: Rockwell Automation / Allen-Bradley
PV PLUS 1000, KEY/TOUCH, ENET, DC PS, STD MEM INCL RS232, ETHERNET, USB
| Manufacturer | Rockwell Automation |
| Keypad / Touch actuation lifespan: | 1 million presses |
| Product Type: | PanelView Plus 1000 Operator Terminals |
| Product Family: | PanelView Plus Operator Terminals |
| Operator Input: | Keypad / Touch |
| Display Type: | Color active matrix, thin-film transistor (TFT) with liquid crystal display (LCD) |
| Brand | Allen-Bradley |
| Lifecycle status: | Discontinued |
| Display Area: | 211 x 158 mm (8.3 x 6.2 in.) |
| Resolution: | 640 x 480 |
| Backlight | CCFL 50,000 hours life, min. |
| Keypad function keys: | F1 to F16, K1 to K16; 0…9, Special Characters, Backspace, Enter, Left and Right Tab, keys, Shift keys |
| Touch: | Analog Resistive |
| Internal memory: | 32MB Flash Memory / 32 MB Random Access Memory |
| Integrated ports: | Ethernet, Data Highway Plus (DH+), Remote I/O (RIO), DH485, RS232, USB communication ports. |
| Input Voltage range: | 18-30VDC |
| Display Size | 10.4 in |
| Part Number/Catalog No. | 2711P-B10C4D1 |
| Product Line | Panelview Plus 1000 |
| Display Color | Color |
| Input Type | Keypad/Touchscreen |
| Communication | Ethernet and RS-232 |
| Input Power | 18-32 VDC |
| Memory | 64 MB |
| Communication Cable | 1761-NET-ENI |
| Shipping Weight | 10 lbs. |
| Shipping Dimensions | 18 x 14 x 8 in |
| Series | Ser A, B, C, D, and F |
| UPC | 10662073071355 |
| Product Lifecycle Status* | Discontinued/Obsolete |
