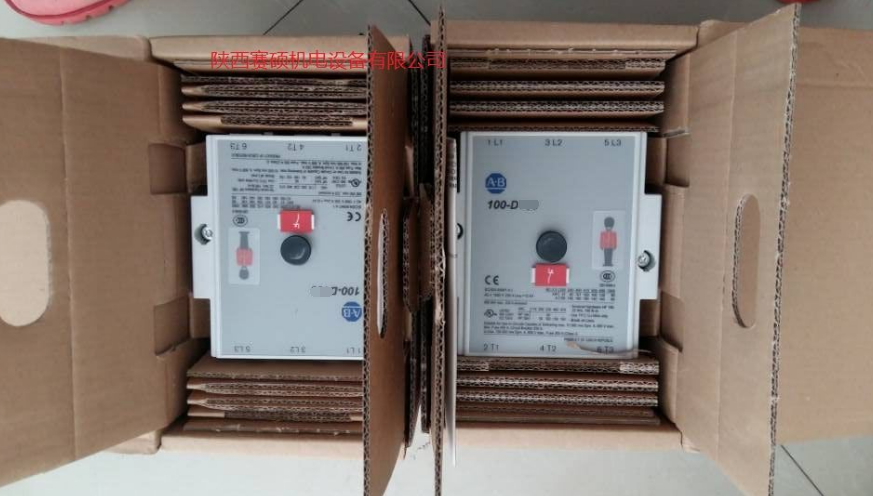

100-D180D11 Bulletin 100-D IEC magnetic contactors from Allen-Bradley
| Technical specifications for 100-D180D11 | |
| Brand | Allen-Bradley / Rockwell Automation |
| Series | 100 Contactors |
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Manufacturer | Allen-Bradley |
| Part Number | 100-D180D11 |
| Product Bulletin | 100-D Contactors |
| Product Family | Motor Control |
| Product Type | Contactor |
| Part Number | 100-D180D11 |
| Product Category | IEC Contactor |
| Poles | 3 |
| No. of Poles | 3-poles |
| Part Number/Catalog No. | 100-D180D11 |
| Current Rating | 180 Amps |
| Rated Current Rating | 180 Amps @ 400 VAC (60 degrees C) 250 Amps @ 600 VAC (40 degrees C) |
| Coil type | Conventional |
| NC Contacts | 1 |
| Maximum Current | 860 Amps |
| Coil voltage | 110 VAC @ 50 Hz; 120 VAC @ 60 Hz |
| NO Contacts | 1 |
| Auxiliary contacts | One (1) Normally Open (N.O.); One (1) Normally Closed (N.C.) |
| Operating current, min | 180 Amperes |
| Type | Non-reversing |
| Contactor Type | Non-reversing |
| AC motor switching rating, 50 Hz | 110 kilowatts at 200 Volts; 55 kilowatts at 230 Volts; 90 kilowatts at 400 Volts; 90 kilowatts at 415 Volts; 110 kilowatts at 500 Volts; 90 kilowatts at 690 Volts; 132 kilowatts at 1000 Volts |
| Isolation Voltage | 1000 Volts |
| Coil | Conventional coil |
| AC motor switching rating, 60 Hz voltage | 50 Hp at 230 Volts; 60 Hp at 460 Volts; 125 Hp at 575 Volts |
| Impulse Voltage | 12 kilovolts |
| Coil voltage | 110 VAC @ 50 Hz 120 VAC @ 60 Hz |
| Mounting | Panel mounting only |
| Storage Temperature | -40 to 80 degrees Celsius |
| Power Ratings @ 50 Hz | 55 kW @ 230 VAC; 90 kW @ 400VAC and 415VAC; 110 kW @ 500 VAC; 90 kW @ 690 VAC; 132 kW @ 1000VAC; 110 kW @ 200VAC |
| Compatible components | Bulletin 193 |
| Operating Temperature | -25 to 60 degrees Celsius |
| Power Ratings @ 60 Hz | 50 Hp @ 230VAC; 60 Hp @ 460 VAC; 125 Hp @ 575 VAC |
