1766-L32AWAA

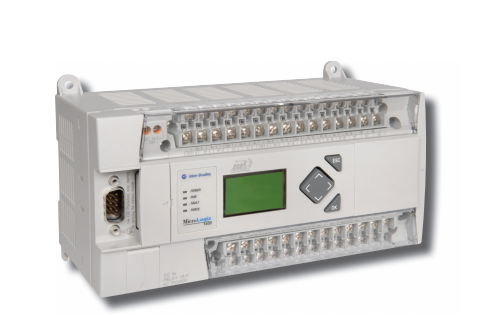

Allen-Bradley, 1766-L32AWAA, MicroLogix 1400, 20 digital 120V ac inputs, 12 Relay outputs, 4 Analog (12 bits) inputs, 2 Analog (12 bits) outputs, 110/240V ac power
| Technical specifications for 1766-L32AWAA | |
| Input Signal | 120 V AC |
| Output Signal | Relay |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Communication | DF1, DH-485, Modbus RTU, ASCII, DNP3, EtherNet/IP messaging, DNP3 over IP, Modbus TCP/IP |
| Display | Yes |
| Enclosure | IP20 |
| Type | Controller |
| PowerSupply | 120/240V AC |
| Embedded Analog | (4) Voltage Inputs / (2) Voltage Outputs |
| Operating Temperature | -20… 60 °C (-4…140 °F) |
| Number of Channels | 20 I/P, 12 O/P |
| Mounting | DIN Rail, Panel Mount |
| Memory | 20 KB |
| Interface | Ethernet Port, Isolated RS232/485 and Non-Isloated RS232C Serial Ports. |
| Height | 90 mm |
| Width | 180 mm |
| Depth | 87 mm |
