20F11ND096JA0NNNNN
Allen-Bradley

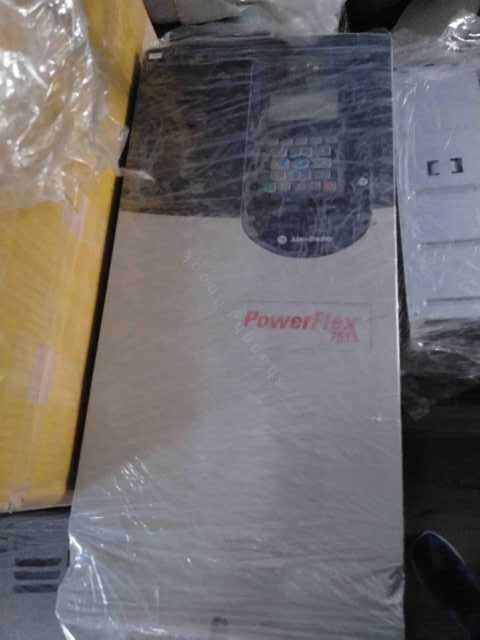

AC Drive, PowerFlex 753, 96A, 75 HP ND, 60HP HD, 480VAC, 3PH, Frame 5
| Part Number/Catalog No. | 20F11ND096JA0NNNNN |
| Series | PowerFlex 753 |
| Default CM Cap Connection | Jumper Installed |
| Internal Resistor | No |
| Internal Transistor | Yes |
| Brand | Allen-Bradley |
| Frame | 5 |
| Voltage Rating | 480VAC/650VDC |
| Continuous Output Current, ND | 96 Amperes |
| Continuous Output Power, ND | 75 HP |
| Continuous Output Current, HD | 77 Amperes |
| Continuous Output Power, HD | 60 HP |
| Human Interface Module (HIM) | Not Included |
| Premiere integration: | Supported |
| Optional communication protocols: | CIP Motion; ControlNet (Coax or Fiber); DeviceNet; RS485 DFI; PROFIBUS DP; Modbus/TCP; HVAC (Modbus RTU, FLN P1, Metasys N2); Bluetooth; CANopen and LonWorks. |
| Control Methods: | Vector Control w/FORCE Technology with and without an encoder feedback; Sensorless Vector Control (SVC); Volts per Hertz control and Permanent Magnet Motor control but only the interior component |
| Frames | 1..5,8…10 |
| Enclosure Type | AC & DC Input w/Precharge |
| Frames 2 | 2…7 |
| Enclosure Type 2 | IP20/IP00, NEMA/UL Type Open |
| Voltage | 480V AC/650V DC |
| Filtering | Yes |
