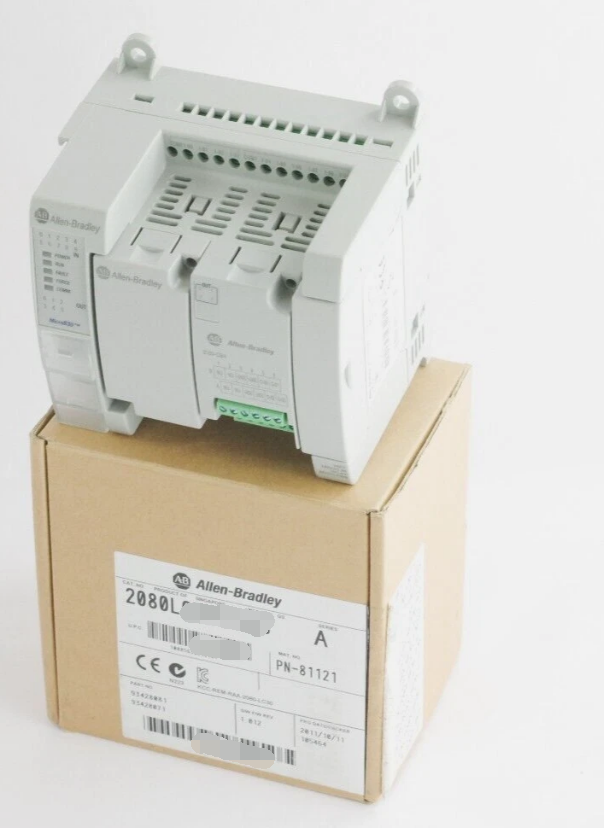

2080-LC30-16QWB
Allen-Bradley
Controller, Programmable, 6 Inputs, 4 Outputs, Fixed Terminals
| Technical specifications for 2080-LC30-16QWB | |
| Manufacturer | Allen Bradley |
| Product Type | Programmable Logic Controller |
| Product Line | Micro 830 |
| Part Number | 2080-LC30-16QWB |
| Weight | 1.00 lbs (0.45 kg) |
| Inputs | 10 |
| Input Type | 24V DC/AC |
| Product Description | Programmable Logic Controller (PLC) |
| Outputs | 6 |
| Integrated discrete inputs | Sixteen (16) 24 VDC / VAC |
| Output Type | Relay |
| Integrated outputs | None |
| Motion Axis | N/A |
| Integrated Relay outputs | Six (6) Relay |
| HSC | 2 HSC |
| Integrated Analog input | None |
| Max. Digital I/O | 32 |
| Integrated Analog output | None |
| Plug-In Slots | 2 |
| Built-in communication interfaces | One (1) USB 2.0; One (1) RS232 / RS485 combo port |
| Base Serial Port | RS-232/485 non-Isolated |
| Supported Protocols | Modbus RTU Master/Slave, ASCII, CIP |
| Maximum number of steps | 4K Steps |
| Maximum data size | 8K bytes |
