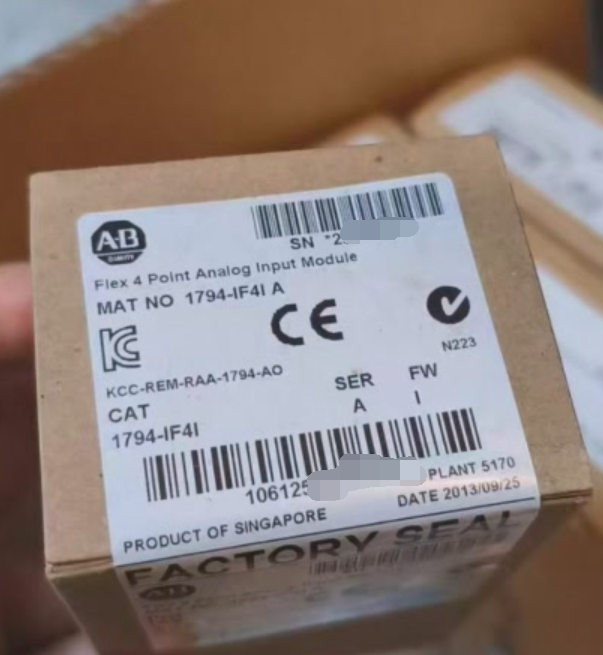

1794-IF4I
Flex 4 Point Analog Input Module
1794 Flex, Flex Ex, Flex XT I/O System, Analog Input Module, 16 Bit, 4 Point Isolated
| Technical specifications for 1794-IF4I | |
| Manufacturer | Allen Bradley |
| Product Type | Flex I/O Isolated Input Analog Module |
| Product Line | Flex I/O 1794 |
| Part Number | 1794-IF4I |
| GTIN | 10612598171573 |
| Weight | 0.31 lbs (0.14 kg) |
| Conversion Type | Sigma Delta |
| Product Description | Flex IO Isolated Analog Input Module |
| No. of inputs | Four (4); isolated |
| Input signal type | 0 to 20mA, 4 to 20 mA, +/-20mA, +/- 10VDC and 0 to 10 VDC, +/-5VDC and 0 to 5 VDC |
| External DC supply, nom | 24V DC |
| External DC supply range | 19.0…31.2V DC (includes 5% AC ripple) |
| Mounting | DIN Rail |
| Wire Size | Determined by installed terminal base |
| Operating Temperature | 0 to 55 C (32 to 131 F) |
| Storage Temperature | –40…85 °C (–40…185 °F) |
| Vibration | 5g @ 10 to 500 Hz |
| Operating Shock | 30 g |
| Thermal dissipation, max | 6.8 BTU/hr @ 31.2V DC |
| Power dissipation, max | 2.0 W @ 31.2V DC |
| Inputs | 4 Isolated |
| Resolution | 16 bits |
| Input Current Terminal | 4 to 20mA |
| Input Voltage Terminal | +/- 10V |
| FlexBus Current | 50mA |
| External DC Power Supply | 24 Volts DC nomial |
| Isolation Voltage | 120 Volts Continuous |
| Power Dissipation | 2.0 Watts at 31.2 Volts DC maximum |
| Thermal Dissipation | 6.8 BTU/hour at 31.2 Volts DC maximum |
