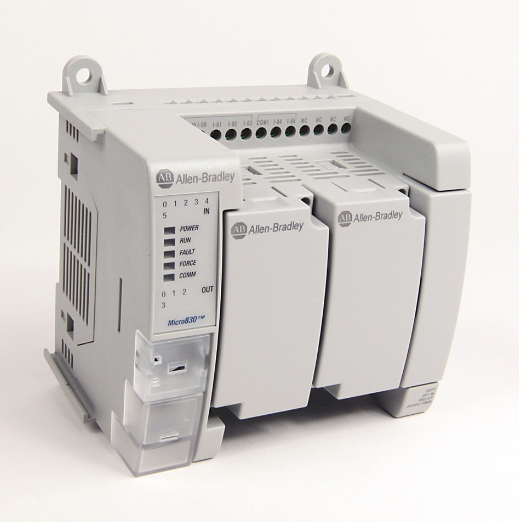

2080-LC30-16QVB
Allen-Bradley
MICRO830 16 I/O
| Technical specifications for 2080-LC30-16QVB | |
| Manufacturer | Allen Bradley |
| Product Type | Programmable Logic Controller |
| Product Line | Micro 830 |
| Part Number | 2080-LC30-16QVB |
| Weight | 0.81 lbs (0.37 kg) |
| Inputs | 10 |
| Input Type | 24V DC/AC |
| Product Description | Programmable Logic Controller (PLC) |
| Outputs | 6 |
| Integrated discrete inputs | Ten (10) 24 VAC / VDC |
| Output Type | 24V Sink |
| Integrated outputs | Six (6) 24 VDC sink outputs |
| Motion Axis | 1 PTO |
| Integrated Relay outputs | None |
| HSC | 2 HSC |
| Integrated Pulse Train Output (PTO) | One (1) |
| Max. Digital I/O | 32 |
| Integrated High-Speed Counter input | Two (2) |
| Plug-In Slots | 2 |
| Built-in communication interfaces | One (1) USB 2.0; One (1) RS232 / RS485 combo port |
| Base Serial Port | RS-232/485 non-Isolated |
| Supported Protocols | Modbus RTU Master/Slave, ASCII, CIP |
| Maximum number of steps | 4K Steps |
| Maximum data size | 8K bytes |
