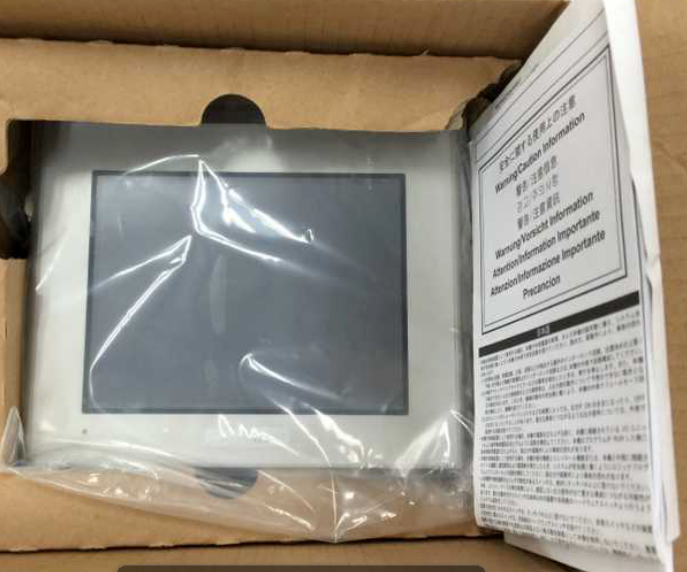

PFXGP4502WADW
| Standard product information | |
| Family | HMI |
| Series | GP4000E Series |
| Size | 10″ Wide |
| Display specifications | |
| Display type | TFT Color LCD / Resistive Film (analog) |
| Display size | 10.1″ Wide |
| Resolution | 800 x 480 pixels (WVGA) |
| Effective display area | W219.6 x H131.76 mm [W8.645 x H5.187 in.] |
| Display colors | 65,536 colors |
| Backlight | LED |
| Backlight service life | 20,000 hrs. or more (each in continuous operation at 25 °C [77 °F] before backlight brightness decreases to 50%)*1 |
| Brightness control | 8 Levels (Adjusted with touch panel) |
| Touch panel type | Resistive Film (analog) |
| Touch panel lifetime | 1,000,000 times or more, Sweeping 100,000 times or more |
| Language fonts | ASCII: (code page 850) alphanumeric (including European characters) |
| Chinese (simplified): GB2312-80 codes | |
| Japanese: ANK 158, Kanji: 6,962 (JIS standards 1 & 2) (including 607 nonkanji characters) | |
| Korean: (KSC5601 – 1992 codes) Hangul fonts | |
| Chinese (traditional): BIG 5 codes* | |
| Character sizes | Standard font: 8 x 8, 8 x 16, 16 x 16 and 32 x 32 pixel fonts |
| Font sizes | Width can be expanded 1, 2, 4, and 8 times. Height can be expanded 1/2, 1, 2, 4, and 8 times. |
| 8 x 8 dots | 40 char. x 30 rows |
| 8 x 16 dots | 40 char. x 15 rows |
| 16 x 16 dots | 20 char. x 15 rows |
| 32 x 32 dots | 10 char. x 7 rows |
