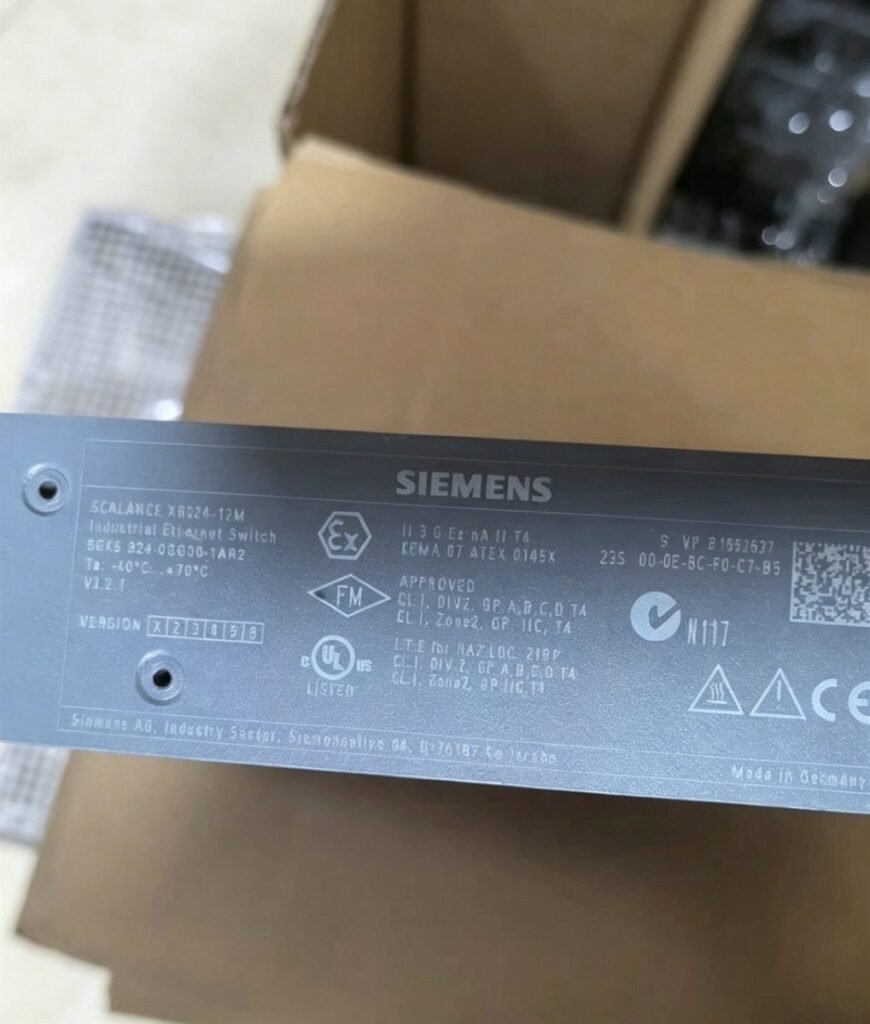

| Basic Product Information |
|
| MLFB Order Code |
6GK5324-0GG10-1AR2 |
| Product Series |
SCALANCE XR300 |
| Device Type |
Layer 2 Managed Industrial Gigabit Ethernet Switch |
| Model Designation |
XR324-12M |
| Country of Origin |
Germany |
| Mounting Type |
19-inch Standard Rack-mountable |
| Port Orientation |
Front-facing Ports |
| Protection Class |
IP30 (Cabinet Internal Installation Only) |
| Cooling Method |
Passive Natural Convection Cooling |
| Included Accessories |
C-PLUG Configuration Memory Card |
| Power Supply Specifications |
|
| Rated Input Voltage |
24 V DC (Wide Range: 18 ~ 30 V DC) |
| Rated Input Current |
1.6 A @ 24 V DC |
| Power Supply Configuration |
Single Non-redundant DC Power Input |
| Input Protection |
Built-in Reverse Polarity, Overcurrent, Overvoltage Protection |
| Port & Interface Specifications |
|
| Media Module Slots |
12 x 2-port Hot-swappable Media Module Slots |
| Supported Module Speed |
100/1000 Mbps (Electrical RJ45 / Optical SFP) |
| Maximum Total Port Capacity |
24 x 100/1000 Mbps Ports |
| Diagnostic Interfaces |
LED Status Indicators, Select/Set Pushbutton |
| Management Console Port |
RJ11 Serial Console Port |
| Fault Signaling Interface |
2-pin Terminal Block for Error Signaling Contact |
| Network Performance & Protocols |
|
| Switching Capacity |
48 Gbps |
| Forwarding Rate |
35.7 Mpps |
| Supported Industrial Protocols |
PROFINET IO, EtherNet/IP, RSTP, VLAN, IGMP Snooping/Querier, ACL, IEEE 802.1Q, IEEE 802.1p |
| Network Management |
Web GUI, SNMP, TIA Portal/STEP 7 Integration, PROFINET System Diagnostics |
| Traffic Control |
Integrated Multicast/Broadcast/Unicast Traffic Limiter |
| Redundancy & Security Features |
|
| Redundancy Capabilities |
Integrated Redundancy Manager, MRP Media Redundancy Protocol, RSTP |
| Ring Redundancy Reconfiguration Time |
< 200 ms |
| Security Functions |
Port Security, Access Control Lists (ACL), Storm Control, Loop Detection |
| Industrial Cybersecurity Certification |
IEC 62443-4-2 |
| Dimensions & Weight |
|
| Overall Width |
44 mm |
| Overall Height |
483 mm |
| Overall Depth |
305 mm |
| Net Weight |
6.32 kg |
| Environmental & Compliance Specifications |
|
| Operating Temperature Range |
0 °C ~ +60 °C (Derated to +50 °C for Vertical Installation) |
| Storage Temperature Range |
-40 °C ~ +85 °C |
| Relative Humidity |
5% ~ 95% (Non-condensing) |
| Vibration Resistance |
IEC 60068-2-6 Compliant |
| Shock Resistance |
IEC 60068-2-27 Compliant |
| Regulatory Certifications |
CE, UL, cULus, IEC 62443-4-2, RoHS |
