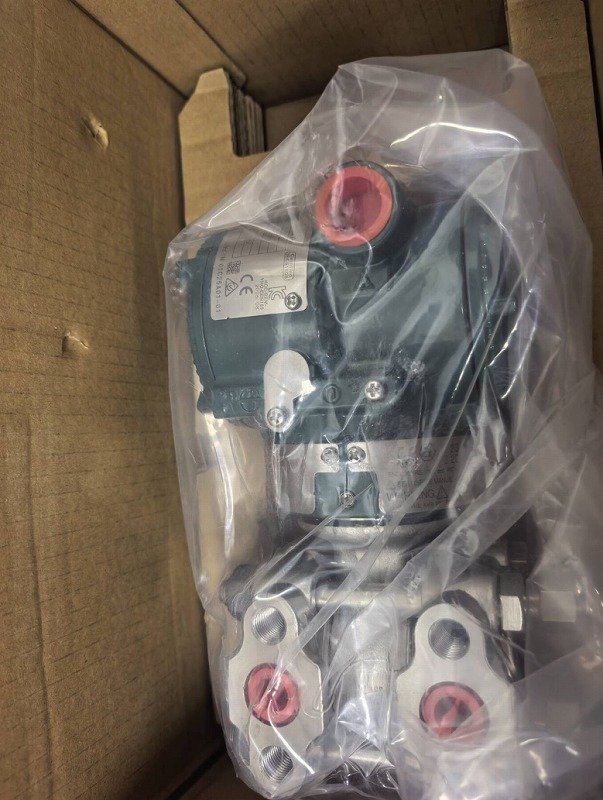

EJA110E-JFS5G-919EJ/M01/KF22
| Code | Description | Explanation |
|---|---|---|
| EJA110E | Product Series | Traditional-mount differential pressure transmitter in the EJA-E Series . |
| J | Output Signal | 4 to 20 mA DC with HART 5/HART 7 protocol digital communication . |
| F | Measurement Span (Capsule) | 0.5 to 5 kPa (2.0 to 20 inH₂O). This low-range capsule is specifically designated for wetted parts material code S . |
| S | Wetted Parts Material | ASTM CF-8M (equivalent to 316L stainless steel) for process-wetted parts . |
| 5 | Process Connection | Without process connector; 1/4 NPT female threads on the cover flanges . |
| G | Bolts and Nuts Material | 316L SST (stainless steel) . |
| 9 | Installation Orientation | Horizontal piping with the high-pressure side on the left . |
| 1 | Amplifier Housing | Cast aluminum alloy . |
| 9 | Electrical Connection | 1/2 NPT female threads, with two electrical connections and a blind plug . |
| E | Integral Indicator | Digital indicator with a range-setting switch (push-button) |
